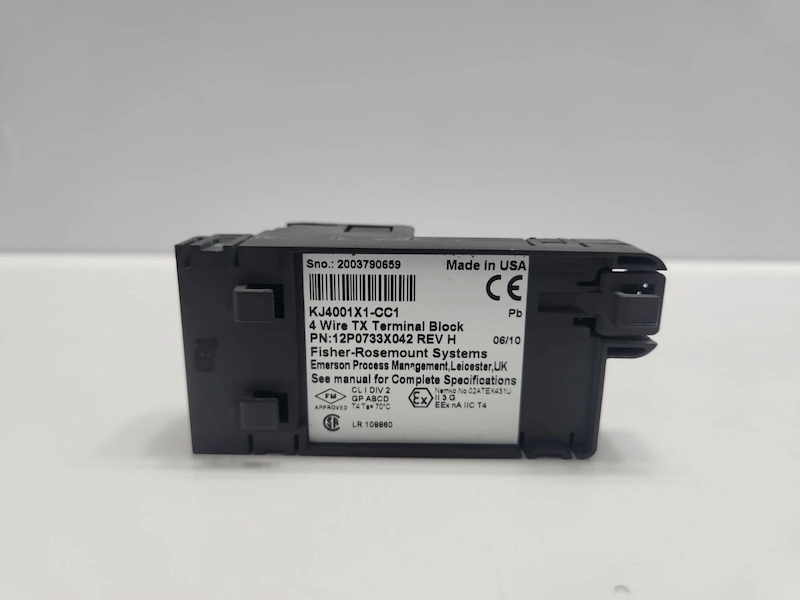

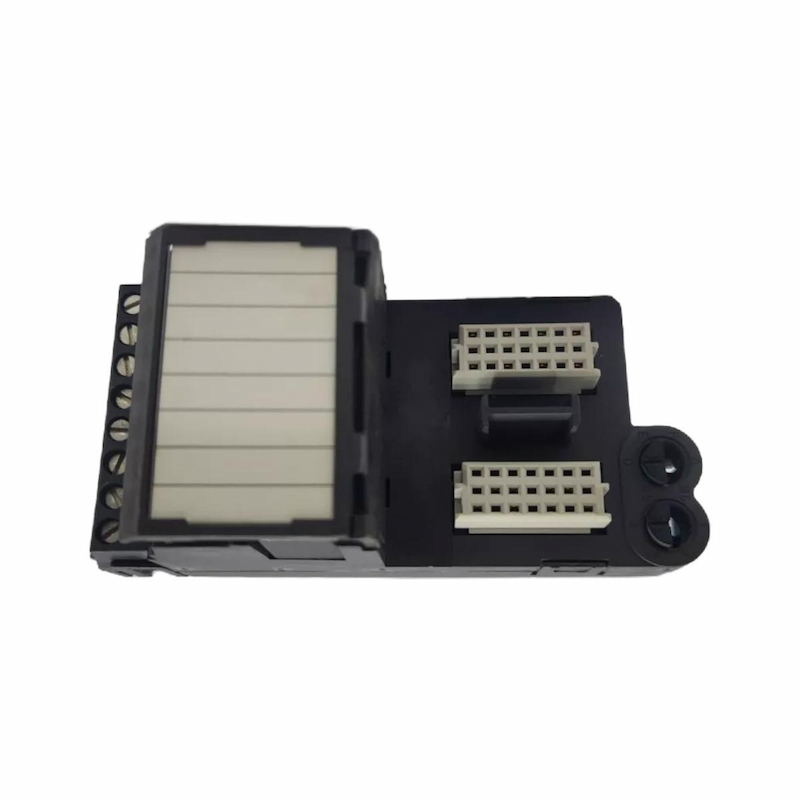

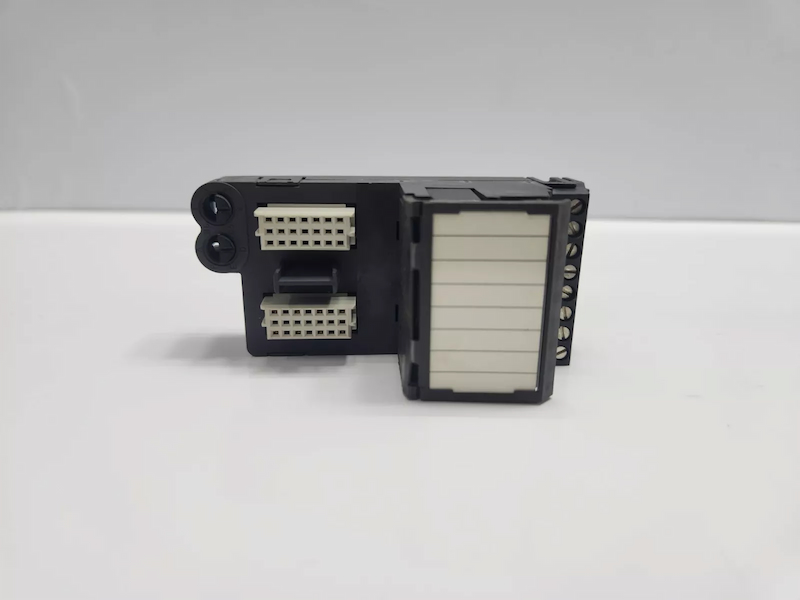

Emerson KJ4001X1-CC1 12P0733X032 4-Wire I/O Terminal Block

Emerson KJ4001X1-CC1 12P0733X032 4-Wire I/O Terminal Block

Functional Description

The KJ4001X1-CC1 is an I/O Terminal Block belonged to DeltaV M-series Traditional I/O subsystem.

The Traditional I/O subsystem includes:

· I/O interface carrier (a DIN rail surface mounted) on which all I/O related components are installed.

· Bulk AC to 24 VDC power supply for field devices.

· An I/O interface consisting of an I/O card and an I/O terminal block.

· A variety of analog and discrete I/O cards enclosed in a common form factor that easily plugs into the I/O

interface carrier.

· A variety of I/O terminal blocks mounted on the I/O interface carrier that can be pre-wired before I/O card

installation.

All I/O cards are enclosed in a common form factor that plugs into the I/O interface carrier. The housing is

clearly labeled with the enclosed I/O card type. All cards have power and internal error indicators. Eight

channel cards have clearly visible channel status LEDs.

All cards meet ISA G3 corrosion specifications by the careful selection of superior electronic components and

the use of conformal coating.
