Emerson KL2101X1-BA1 12P4987X102 CHARM I/O Card

Emerson KL2101X1-BA1 12P4987X102 CHARM I/O Card

Functional Description

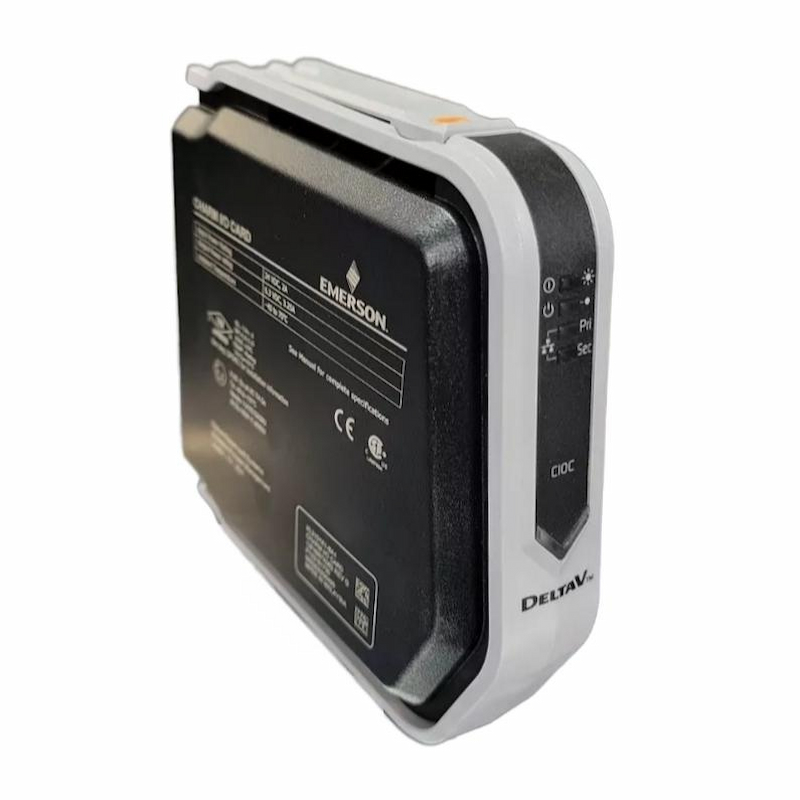

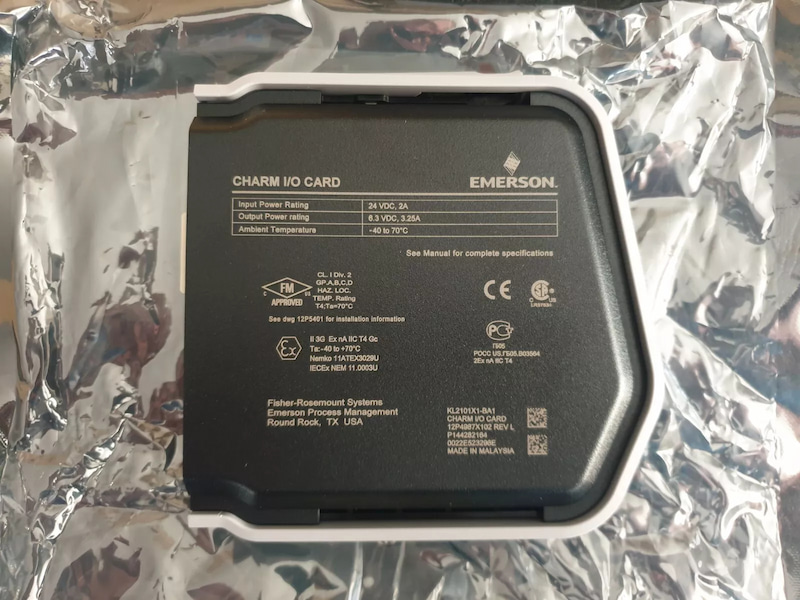

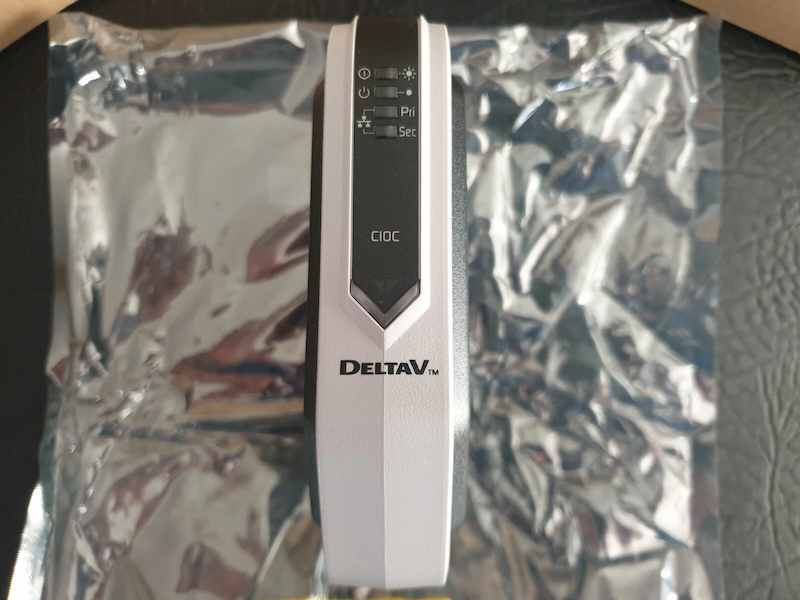

The CHARM I/O card (CIOC) supports up to 96 individually configurable channels and is designed specifically

for multi-core home run cables in centrally located marshalling cabinets. It can also be installed in field

junction boxes to further reduce system design and installation costs. All communications are completely

redundant from the channel (CHARM) to the DeltaV controller.

CHARM I/O Card (CIOC) provides communication between CHARMs and the Ethernet I/O network to

M-series, S-series, and PK Controllers. The CIOC has Achilles Communications Certification Level 1 and the

redesigned CIOC2 has more computing power and Achilles Communications Certification Level 2. The CIOC2

is a drop-in replacement for the CIOC (v13.3.1 or later is required).

Technical Specifications
