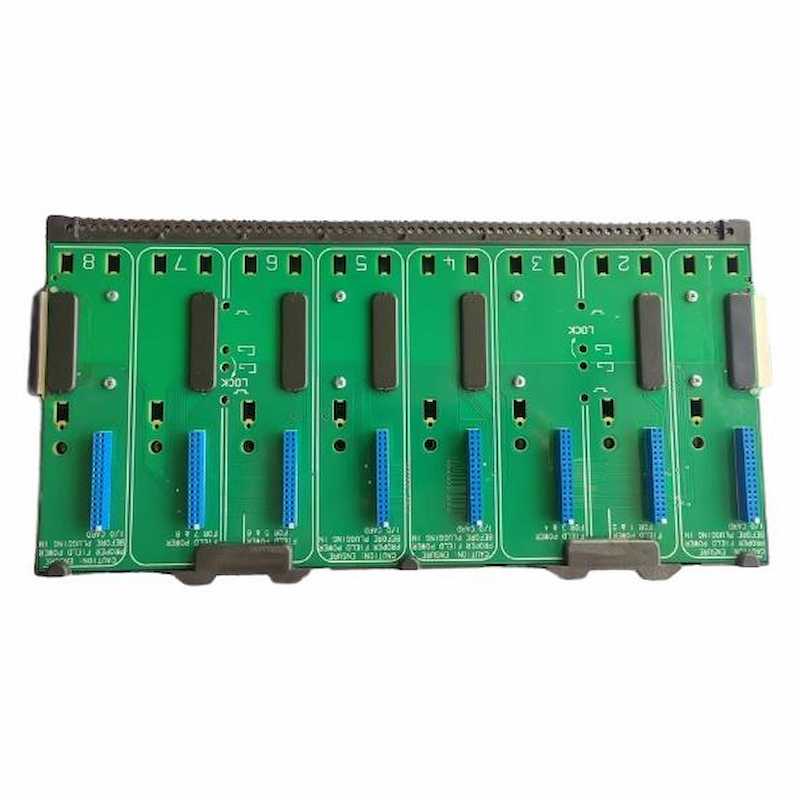

Emerson KJ4001X1-BE1 12P0818X072 8 Wide I/O Carrier with Shield Bar

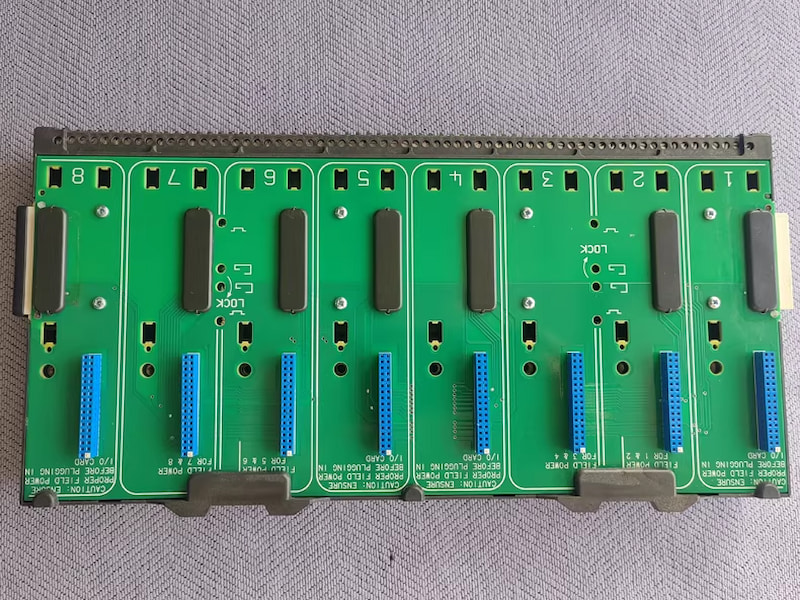

Emerson KJ4001X1-BE1 12P0818X072 8 Wide I/O Carrier with Shield Bar

Functional Description

The I/O interface carrier plugs on to the power/controller carrier. The power/controller carrier supplies the

system power and communications between the I/O interfaces and the controller. The controller processes

the I/O interface information. An additional power/controller carrier is required for use with redundant

controllers.

Mount your interface carrier on a T-type DIN rail. The I/O interface carrier includes the connections for the

bulk 24 VDC field instrument power, I/O interfaces, and terminal blocks. Each I/O interface carrier is

equipped with a connector that allows an additional I/O interface carrier to be plugged on to it. Up to 64 I/O

interfaces on eight 8-wide I/O interface carriers are supported by a single I/O subsystem. For the horizontal-

mount solution, 1-wide local bus extenders allow you to continue the I/O bus on a different row of carriers.

Technical Specifications
