The IOC4T 200-560-000-061 is rear signal terminal IO board paired with machinery protection card for rotating machine monitoring systems.
Бренд :
VMНомер части :
IOC4T 200-560-000-061Описание :
Input/Output cardИсточник :
SwitzerlandСостояние :
NewИзмерение :
40 mm x 40 mm x 24 mmМасса :
385 gОплата :
Bank Transfer

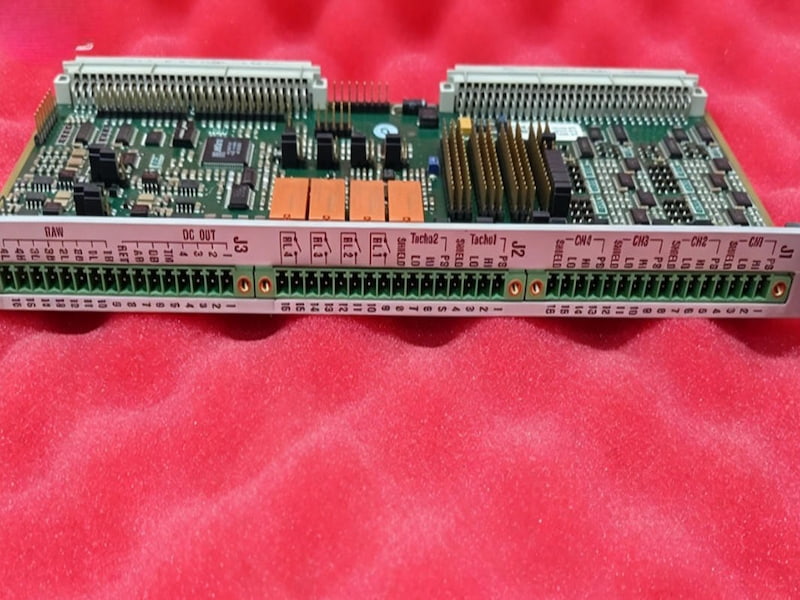

IOC4T 200-560-000-061 Input/Output card
Description
IOC4T (Material Number 200-560-000-061) is a rear-terminal type IO interface card used for the protection card of the complete unit. It is assembled in pairs in the standard monitoring frame and directly connects to various on-site sensors for vibration, eddy current, and rotational speed, transmitting the original measurement signals to the front-end protection card for processing. It integrates surge and electromagnetic isolation protection for all channels, isolating the on-site line interference from damaging the core computing board.
The module is equipped with 4 standard analog output channels and 4 built-in alarm relays, capable of outputting 0-10V or 4-20mA standardized measurement signals to DCS/PLC, as well as outputting switch quantity alarm contacts; it also has 32 programmable digital alarm signals, which can be expanded to external relay cards, supporting hot-swappable insertion while the frame is powered on, and is widely used in steam turbine and compressor unit mechanical protection cabinets.
Features
Rear-mounted IO card for the rack, paired one-to-one with the protection card, with high-speed bidirectional communication via IP bus
4 channels of dynamic signals + 2 channels of rotational speed key-phase input, compatible with mainstream industrial vibration and displacement sensors
4 channels of switchable 0-10V/4-20mA analog output, 4 channels of software-programmable alarm relays
Full-channel EMC and surge protection, suitable for complex electromagnetic conditions in power plants and oil and gas industries
48-bit screw-fastening terminals, ensuring secure wiring, convenient on-site disassembly and maintenance
32 channels of collector-open-circuit alarm outputs, capable of connecting external expansion relay modules
Supports hot-swappable rack without stopping the machine, without interrupting the protection logic of the unit
-20°C to 65°C wide temperature range operation, standard 6U rack size compatible with complete cabinets
Technical Specifications
| Manufacturer | VM |
| Part Number | IOC4T |
| Ordering Information | IOC4T 200-560-000-061 |
| Product Catalog | Vibration Monitoring |
| Description | Input/Output card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 40 mm x 40 mm x 24 mm |
| Weight | 385 g |
