The IOC4T 200-560-000-018 is signal interface I/O card matched with protection module for rotating machinery monitoring systems.
Бренд :
VMНомер части :
IOC4T 200-560-000-018Описание :
Input/Output cardИсточник :
SwitzerlandСостояние :
NewИзмерение :
40 mm x 40 mm x 24 mmМасса :
385 gОплата :
Bank Transfer

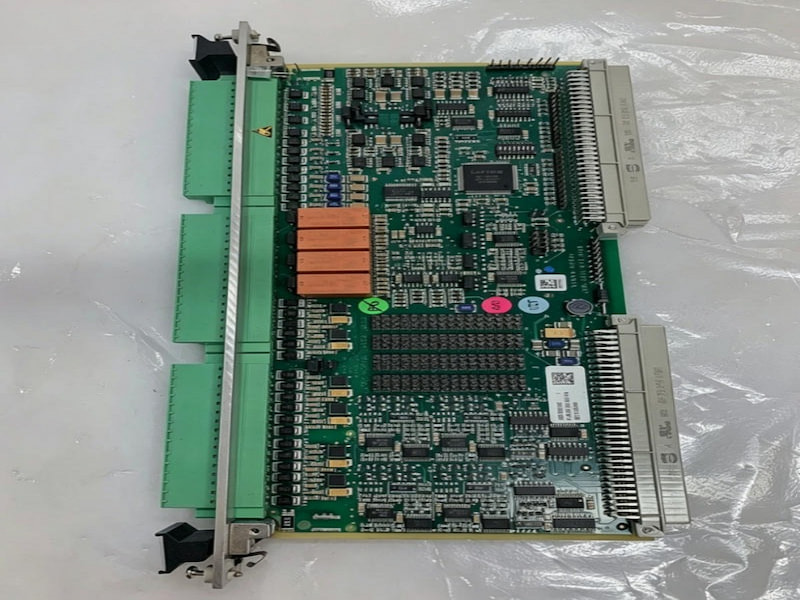

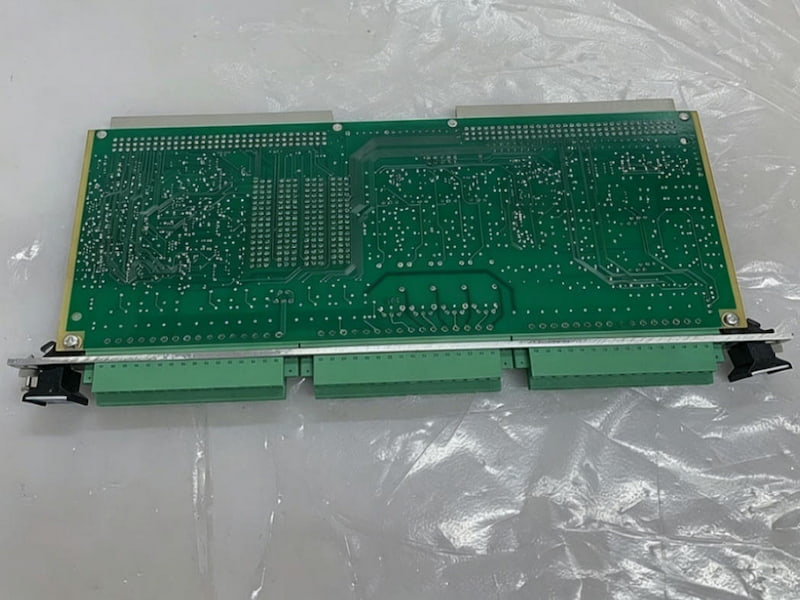

IOC4T 200-560-000-018 Input/Output card
Description
IOC4T (part number 200-560-000-018) is a rear-end signal interface card used for the protection card of the integrated unit. It is installed at the rear of the rack and works in coordination with the front-end protection card through the backplane bus. It is responsible for connecting various external vibration, speed, and process sensor cables, and completing the external connection of the original signals and the interaction with external systems. It is equipped with multiple levels of surge and electromagnetic isolation protection to avoid line interference from damaging the core monitoring board.
The module integrates multiple analog transmitters and alarm relay contacts. The vibration, displacement, and speed data processed by the protection card can be converted into 4-20mA or 0-10V standard signals for external transmission. When an alarm is triggered, it directly drives the relay to output a switch quantity. It supports hot plugging while the rack is powered on and can be used in conjunction with the mechanical protection cabinet kits for steam turbine units, compressors, and other equipment.
Features
The protective cards are used in pairs. The rear-mounted terminal-type IO interface card for the rack.
Compatible with various sensor inputs such as IEPE, eddy current probes, 4-20mA, and rotational pulse.
4 isolated analog outputs (4-20mA/0-10V selectable), 4 alarm relay contacts
Full-channel EMC interference resistance and surge protection, suitable for complex industrial electromagnetic environments
Threaded terminal block, stable wiring, convenient for on-site cable installation and maintenance
Supports hot-swappable insertion during machine shutdown, no need to interrupt the unit's monitoring and protection during replacement
Real-time bidirectional data interaction through the backplane high-speed bus
Operating temperature range of -20°C to 65°C, standard 6U rack suitable for various system enclosures
Technical Specifications
| Manufacturer | VM |
| Part Number | IOC4T |
| Ordering Information | 200-560-000-018 |
| Product Catalog | Vibration Monitoring |
| Description | Input/Output card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 40 mm x 40 mm x 24 mm |
| Weight | 385 g |
