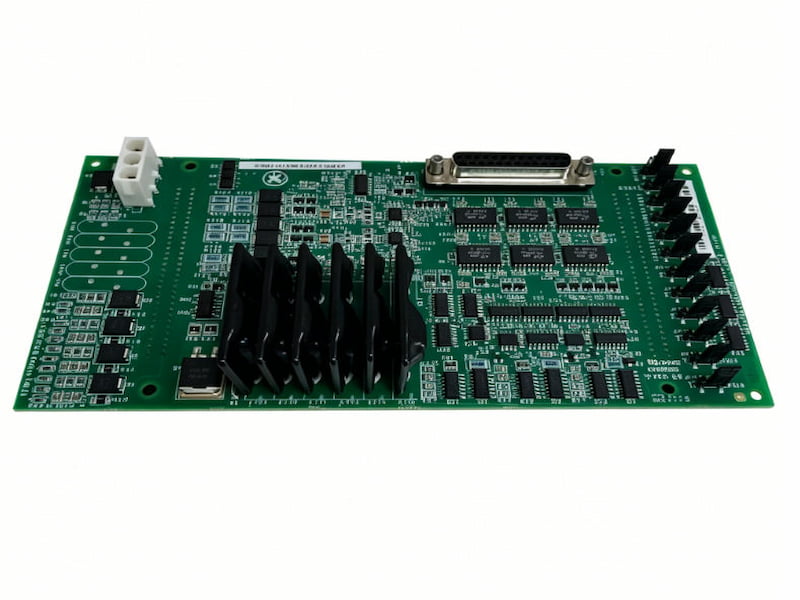

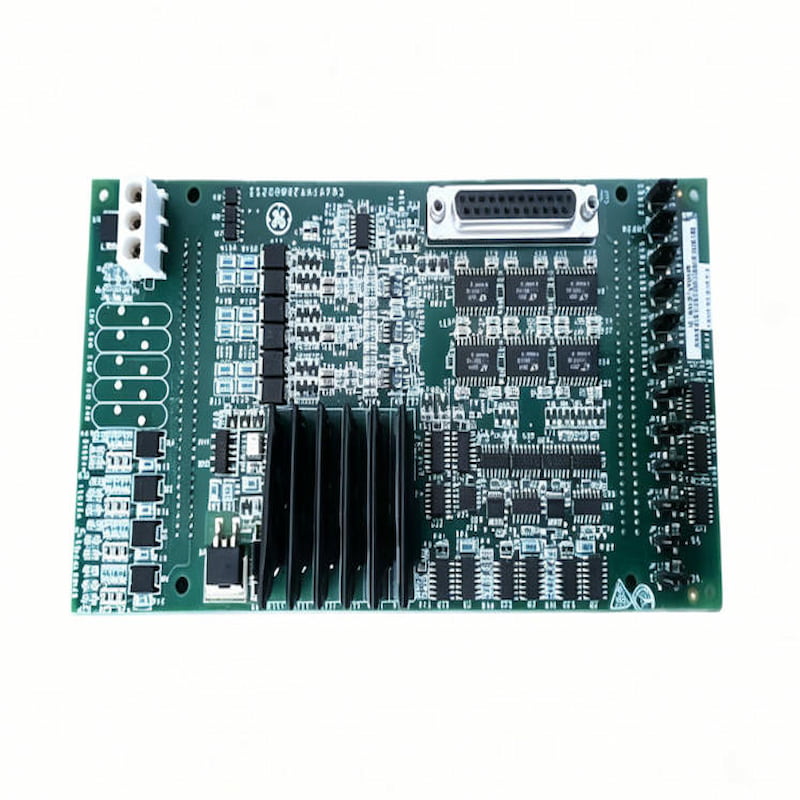

GE IS200WREAH1APR3 Aero Trip Terminal Board

GE IS200WREAH1APR3 Aero Trip Terminal Board

Description

IS200WREAH1APR3 is a dedicated trip terminal board for GE Mark VIe turbine control system for aircraft modification. It is responsible for the signal transmission of the safety interlock circuit of the unit, connecting the on-site shutdown components with the main control unit of the system.

The board is equipped with multiple sets of standard terminal connectors, which can receive various fault signals such as oil pressure, overspeed, and local emergency stop. It stably transmits the trip instructions to trigger the safe shutdown of the unit, and is widely used in the safety protection system of aircraft modification gas turbine power generation equipment.

Features

Compatible with GE Mark VIe control system, dedicated terminal board for turbine trip circuit of aircraft retrofit engines

Multiple channel wiring points, compatible with various local interlock input signals

Safety circuit design, reliable execution of shutdown protection in fault conditions

Industrial hardware resistant to electromagnetic interference, suitable for continuous operation environment of power plants

Clear terminal layout, facilitating on-site wiring, maintenance and fault troubleshooting

Technical Specifications
