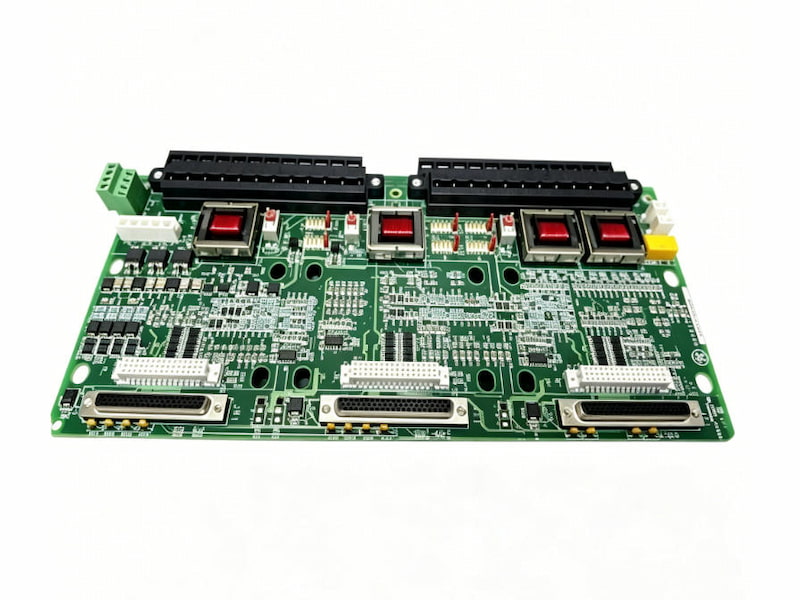

GE IS200TSVCH1ACB Servo Input/Output terminal board

GE IS200TSVCH1ACB Servo Input/Output terminal board

Description

The IS200TSVCH1ACB is a servo terminal board designed for the GE Mark VIe turbine control system. It serves primarily as an interface for signal routing between servo valves, LVDT displacement sensors, and control modules, acting as a critical wiring component in valve servo control loops.

Equipped with multiple dedicated signal terminals, the board acquires valve position feedback signals and transmits servo drive commands, enabling precise position control of various regulating valves in steam and gas turbines. It is designed to meet the demands of long-term, continuous operation in power plant units.

Features

Compatible with the GE Mark VIe control system; dedicated terminal board for servo valves and LVDTs

Multiple independent signal channels for separate transmission of drive commands and valve position feedback

Electrically isolated channels to effectively withstand on-site electromagnetic interference

Organized terminal layout to facilitate on-site wiring, testing, and replacement

Industrial-grade hardware design supporting long-term, stable unit operation

Technical Specifications
