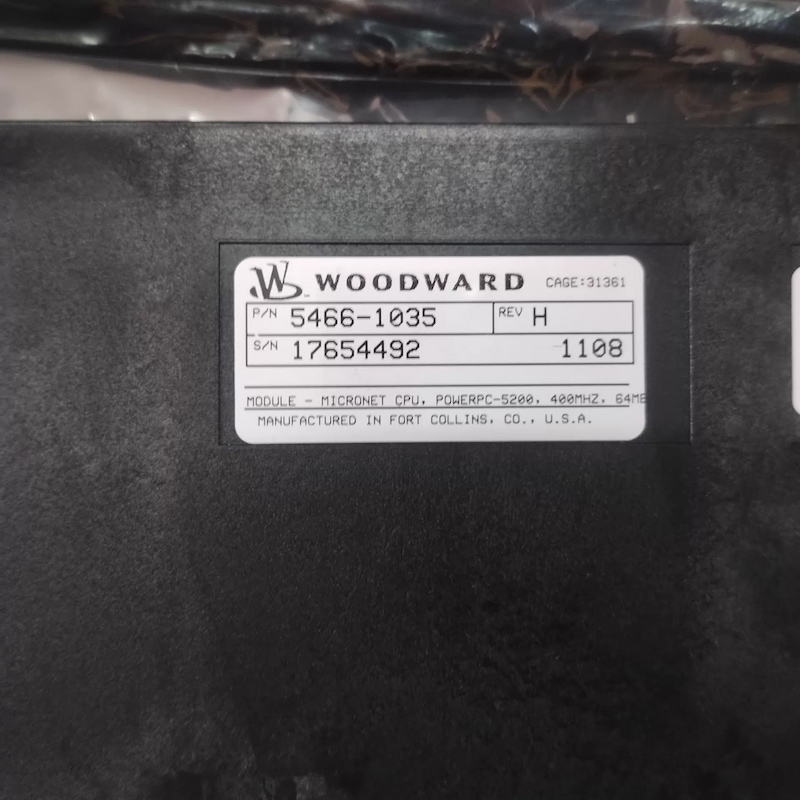

Woodward 5466-1035 MicroNet Plus CPU Module

Woodward 5466-1035 MicroNet Plus CPU Module

Functional Description

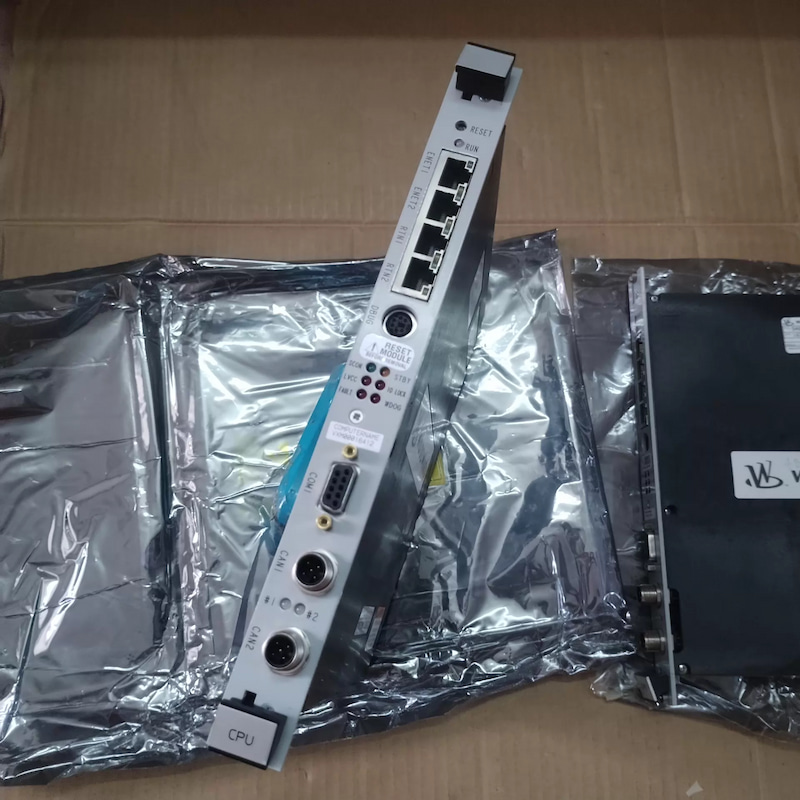

The 5466-1035 MicroNet PowerPC CPU Module contains a Motorola MPC5200 processor,128 MB DDR

RAM,64 MB of flash memory,a Real Time clock,and various communication peripherals.These peripherals

include (2)general use Ethernet ports,(2)Real Time Network ports,(1)serial port,(1)one service port, and

(2)CAN ports.This module includes an FPGA to provide VMEbus master/slave capability as well as other

functions necessary for redundant systems.

The CPU5200 Module can operate in both simplex and redundant modes.Every MicroNet Plus simplex

control contains one CPU module located in the first I/O slot of the MicroNet chassis.A redundant

configuration will also have a CPU located in the CPU2 location (slot 8 or slot 14 depending on which

chassis is used).

This module was designed and rated for –40 to +85 °C operation in the industrial marketplace.

Technical Specifications
