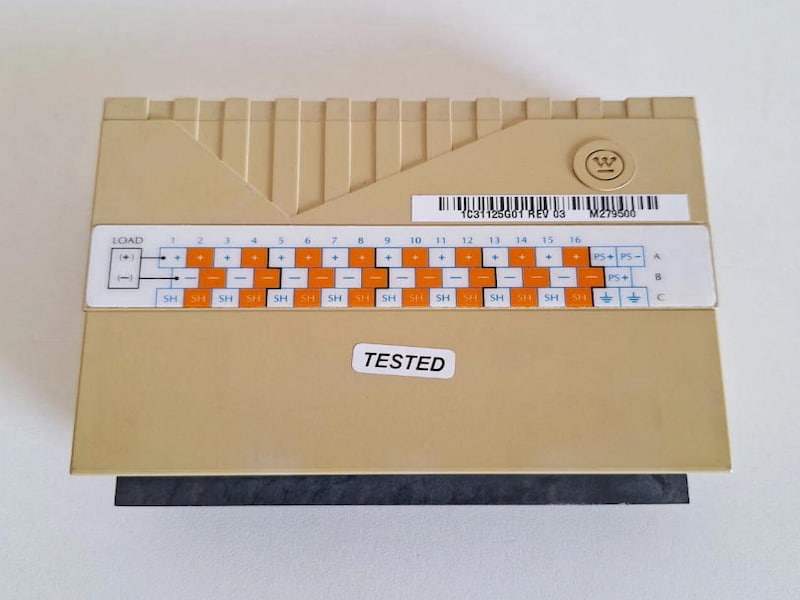

Westinghouse 1C31125G01 Digital Output Module

Westinghouse 1C31125G01 Digital Output Module

Description

1C31125G01 is a digital output module of the Westinghouse (Emerson) Ovation distributed control system. It is responsible for converting system control instructions into electrical signals to drive on-site execution devices such as relays, valves, and switches. It is the core output component of the I/O layer in the DCS system.

This module adopts a channel-level electrical isolation design, supports single-ended output of 0–60 VDC, and has fast response and fault diagnosis capabilities. It is widely applicable to industrial scenarios such as power, petrochemical, and metallurgy, and meets the high-reliability output requirements for process control and equipment interlock.

Features

• Compatible with Westinghouse Ovation DCS system, providing isolated digital output
• Supports 0–60 VDC single-ended output, rated load 1.25A, 250V fast action
• Channels are electrically isolated from the controller, enhancing anti-interference and system safety
• Integrated status monitoring and fault diagnosis, facilitating rapid maintenance
• Wide temperature operating range, suitable for harsh industrial environments
• Compatible with Ovation system standard rack, supporting online replacement
