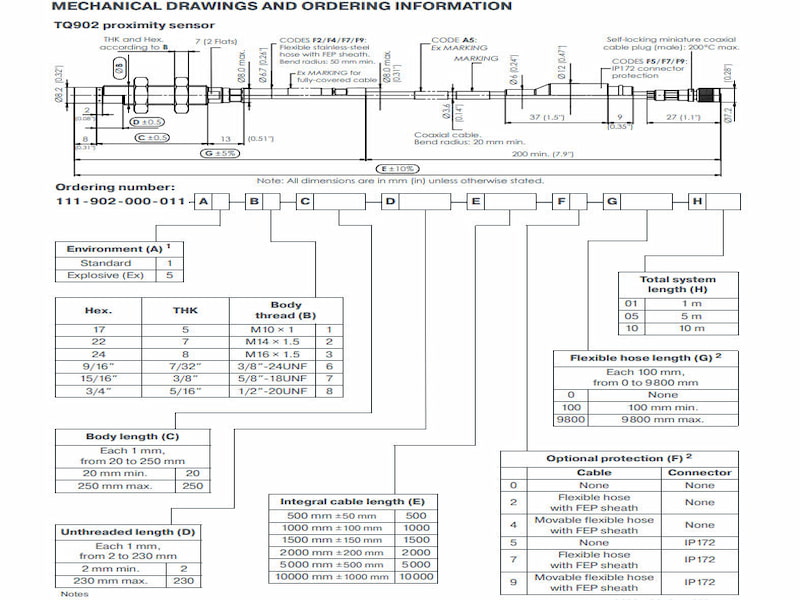

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 Proximity Sensor

TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10 Proximity Sensor

Description

TQ902-011 is a standard-installation electromagnetic eddy current displacement sensor from the TQ900 series. It is developed for non-contact measurement of axial vibration, axial displacement and clearance gaps on rotating machinery. Adopting high-frequency eddy current technology, the sensor precisely captures tiny displacement variations of metal shafts, delivering real-time and accurate monitoring data for core equipment including steam turbines, compressors and motors.

This sensor supports rigorous industrial operation with IP68 protection grade and a wide working temperature range of -40°C to 180°C. It complies with SIL 2 safety certification and API 670 industry standards, with explosion-proof performance adapted for high-temperature and hazardous working areas. Featuring a stainless steel housing and integrated coaxial cable with standard threaded connectors, it ensures long-term operational stability and can work with IQS900 signal conditioners to build a complete industrial machinery monitoring system.

Features

• Non-contact measurement for relative vibration and axial displacement of turbines, compressors, pumps and fans
• Available in 2 mm and 4 mm measuring ranges with 8.2 mm sensor diameter
• Wide temperature resistance: -40°C to 180°C, IP68 dustproof and waterproof protection
• Optional integral coaxial cable lengths: 0.5m, 1.0m, 1.5m, 2.0m and 5.0m
• Explosion-proof certified for hazardous industrial environments
• Fully compliant with API 670 5th edition industrial standard
