Description

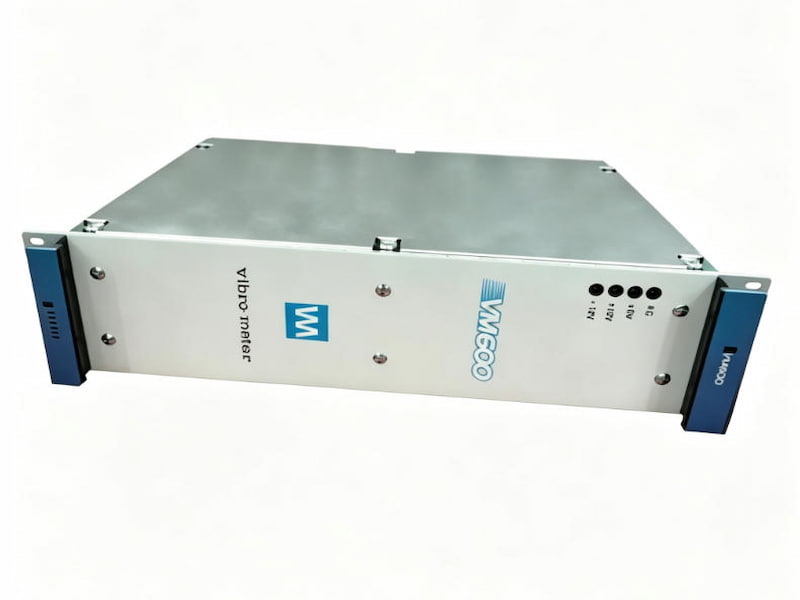

RPS6U (Model 200-582-915-034) is a dedicated power supply module for the 6U rack of the rotating unit monitoring system. It is compatible with the standard chassis of the same series. Through the backplane VME bus, it provides stable +5V and ±12V multi-channel DC voltages for all monitoring cards in the chassis, meeting the power supply requirements for signal acquisition, logic operation, and communication modules. It is widely used in online protection monitoring cabinets of steam turbines and compressors in power plants, petrochemicals, and natural gas industries.

This power supply supports independent power supply of a single module or redundant parallel deployment of two modules. A single unit can fully support the operation of all card components. When one unit fails, the other seamlessly takes over all the loads without the need for shutdown and maintenance. It has multiple protection circuits such as overvoltage, short circuit, and overload protection. It is compatible with wide voltage input to adapt to fluctuations in the on-site power grid. It is equipped with status indicator lights to intuitively reflect the power supply status. In high-temperature environments, the power attenuation is low, ensuring the long-term uninterrupted and stable operation of the unit monitoring system.

Features

6U rack-specific power supply unit, compatible with the standard chassis of the rotating equipment monitoring system

Multiple DC outputs, providing unified power supply for all monitoring cards in the chassis

Supports dual power redundancy configuration, automatically switching in case of a single unit failure, without any risk of downtime

Integrated comprehensive electrical protection mechanism for overvoltage, short circuit, and overload

Wide range of AC/DC input, suitable for unstable power supply environments in industrial sites

Equipped with status indicator lights, providing real-time and intuitive display of power operation status

Low power attenuation in high-temperature conditions, suitable for harsh control cabinet environments in chemical and power industries

Technical Specifications
