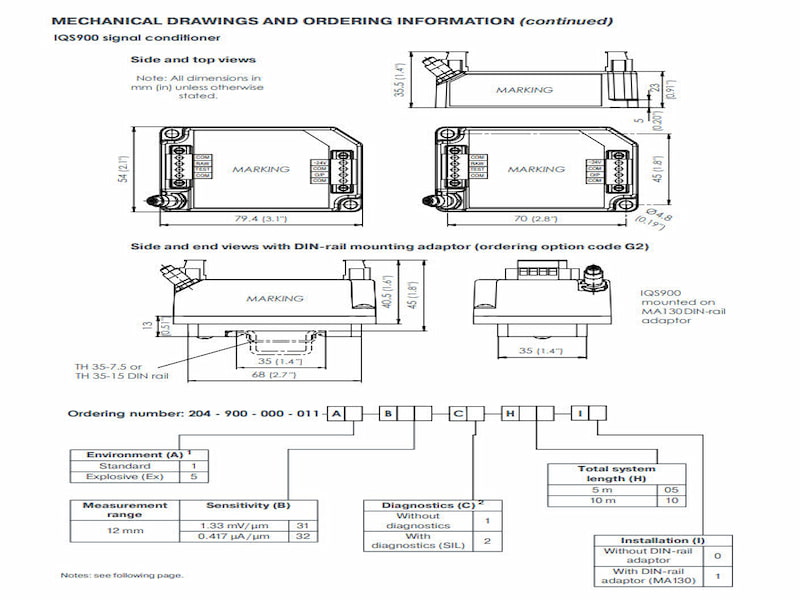

IQS900 204-900-000-011 A5-B21-C1-H10-I1 Signal Conditioner

IQS900 204-900-000-011 A5-B21-C1-H10-I1 Signal Conditioner

Description

The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in a painted aluminium housing.

Note: The IQS900 signal conditioner matches or betters the outstanding measurement performance and specifications of the IQS450 signal conditioner, which it replaces. Accordingly, the IQS900 is compatible with all TQ9xx and TQ4xx proximity sensors / measurement chains.

In addition, the IQS900 signal conditioner includes improvements such as: SIL 2 “by design”, improved frame-voltage immunity, improved electromagnetic immunity and emissions, smaller output impedance (voltage output), optional diagnostic circuitry (that is, built-in self-test (BIST)), raw output pin, test input pin, new DIN-rail mounting adaptor and removable screw-terminal connectors for easier installation.

Applications

• Shaft relative vibration and gap/position measurement chains for machinery protection and/or condition monitoring

• Ideal for use with VM600Mk2/VM600 and VibroSmart® machinery monitoring systems

Technical Specifications
