IQS450 204-450-000-002 A1-B23-H05-I0 Signal Conditioner

IQS450 204-450-000-002 A1-B23-H05-I0 Signal Conditioner

Description

IQS450 (Part Number 204-450-000-002 A1-B23-H05-I0) is a core member of the vibro-meter® product line, an industrial-grade signal conditioner specifically designed for industrial machinery monitoring. Its core function is to form a calibrated proximity measurement system with the TQ401 proximity sensor and EA401 extension cable. Based on the eddy current principle, it enables non-contact, precise measurement of relative displacement in moving mechanical components. It outputs a current signal proportional to the gap distance, providing reliable data support for the protection and condition monitoring of rotating machinery.

Precision Current Output with Wide Range Adaptability: Equipped with B23 specification 2.5µA/µm sensitivity, compatible with a 2mm linear measurement range (typical 0.2-2.2mm), corresponding to -15.5mA to -20.5mA current output, with a dynamic range of 5mA. Frequency response spans DC to 20kHz (-3dB), enabling precise capture of critical parameters like shaft vibration and axial position to meet high-precision monitoring demands.

Multi-scenario environmental resilience: Supports A1 standard environmental deployment, accommodates 5m total system length (H05), with an operating temperature range of -35°C to +85°C and storage temperature range of -40°C to +85°C. It withstands 95% maximum non-condensing humidity environments. Featuring IP40 protection, it endures 2g peak vibration (10-55Hz) and 15g peak shock (11ms half-sine wave), making it suitable for complex industrial conditions.

Safety Compliance and Robust Protection: Complies with CE, EAC certification, and RoHS standards (2011/65/EU). Electromagnetic compatibility meets EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011, and other specifications. Built-in short-circuit protection with 1nF output capacitance and 100µH inductance; operating voltage range -20 to -32V ensures stable performance and enhanced durability.

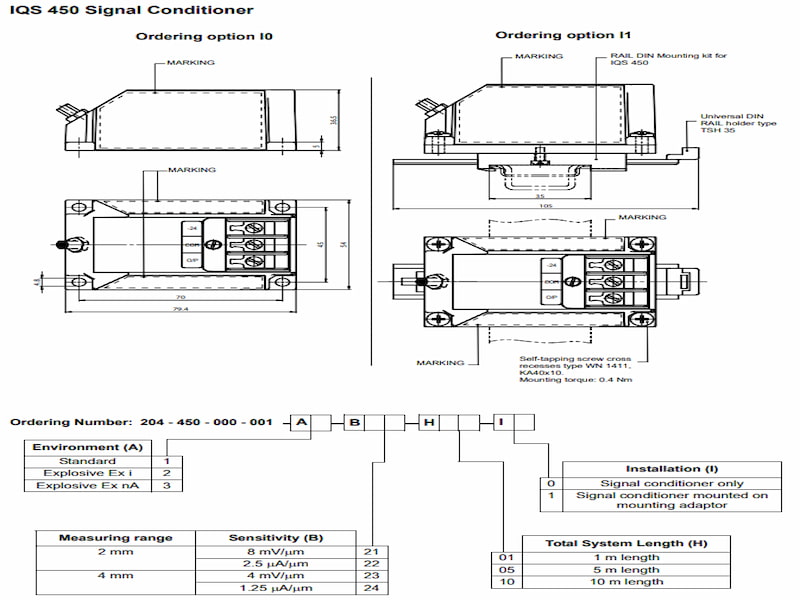

Convenient installation and flexible integration: Features an injection-molded aluminum housing with a standard net weight of approximately 140g. Supports mounting with 2 or 4 M4 screws. Optional MA130 mounting adapter available (I0 is signal conditioner only, can be paired separately). Compatible with TSH 35 universal DIN rails (adapts to TH 35-7.5/15 standard). Equipped with a self-locking mini coaxial input connector (female) and 3 screw terminals (supporting up to 2.5mm² wire), ensuring secure wiring and efficient installation/debugging.

Technical Specifications
