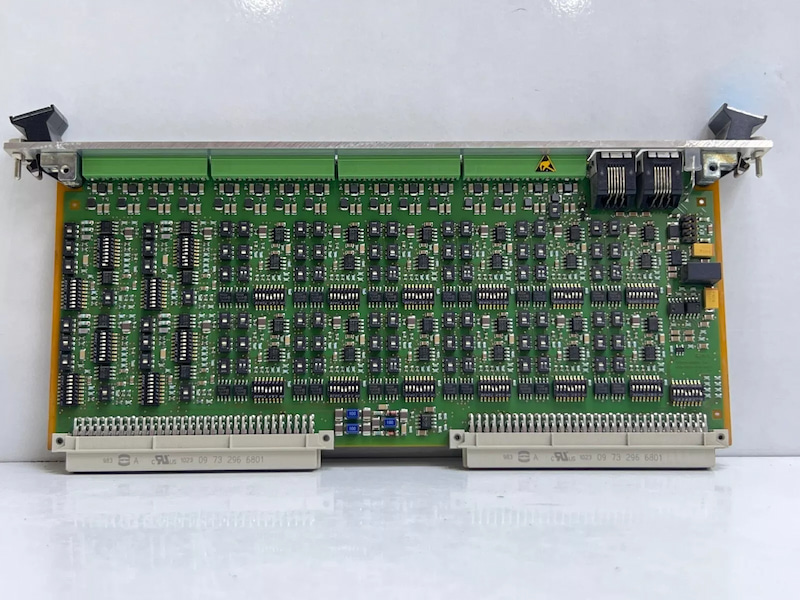

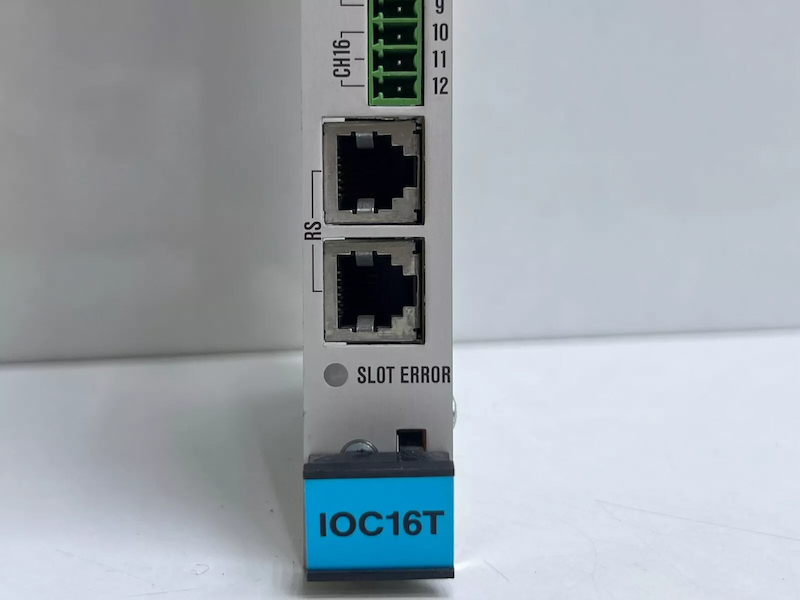

IOC16T 200-565-000-013 Input / Output Card

IOC16T 200-565-000-013 Input / Output Card

Functional Description

The IOC 16T Input / Output Card acts as a signal interface for the CMC 16 (Condition Monitoring Card). It is

installed in the rear of an ABE 04X or ABE 055 (Portable CMS) rack, and connects directly to the rack

backplane via two connectors.

Each IOC 16T is associated with a specific CMC 16 and is mounted directly behind it in the rack. The IOC 16T

contains a terminal strip to connect the transmission cables coming from transducers and conditioners.

However, if these signals are already available via the backplane 'Raw Bus' and 'Tacho Bus' lines, then these

can be selected directly without any need for additional wiring.

The card protects all inputs against electromagnetic interference (EMI) and signal surges and also meets

EMC (electromagnetic compatibility) standards.

Features

· 16 channel interface card for use with the CMC 16 (Condition Monitoring Card)

· Screw terminal strip connectors (48 terminals)

· Ensures EMI protection for all inputs

· Provides signal conditioning for all inputs

· Channel functions selectable via DIL switches

· First 4 channels can be selected as tacho or dynamic inputs (i.e. vibration)

· Last 12 channels can be selected as dynamic or process inputs

· Inputs can be routed via VM Raw Bus and Tacho Bus

· On-board isolated serial RS-485 communication option

· Live insertion / removal of cards

Technical Specifications
