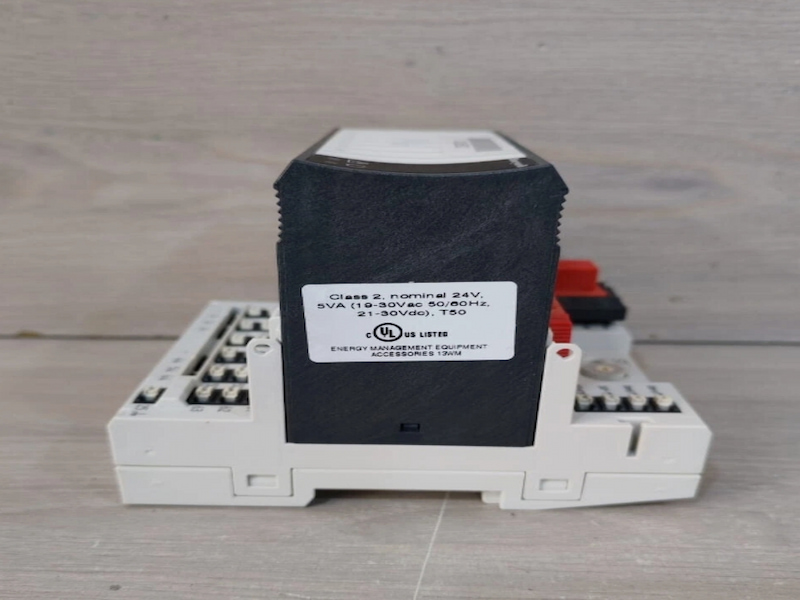

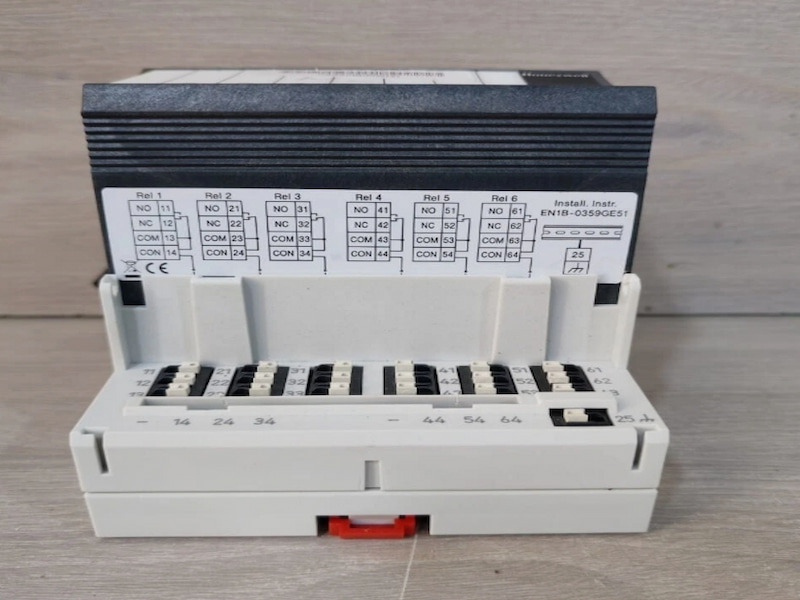

Honeywell XFL824A Relay Output Module (with 6 relay outputs)

Honeywell XFL824A  Relay Output Module (with 6 relay outputs)

Description

The pluggable Excel Web LON Relay Output Modules, with 6 relay outputs, are available in the following versions:

• XFL824A LONWORKS Bus Relay Output Module (without manual overrides)
• XFLR824A LONWORKS Bus Relay Output Module (with manual overrides)

They are installed with the XS824-25 or XSU824-25 Terminal Socket (incl. one connector bridge, one cross connector, and one swivel label).

Accessory disconnector module: XS812-RO

Features

• Cross-Connecter
• 1 yellow LED per output
• Optional versions with manual override switches (Auto, 0, 1; LED flashes in override mode)
• Feedback on manual override signal
• Configurable safety position for outputs in case of communications problems (remain, OFF, ON)
• Permissible Load per Relay Output Module (Total)
• Max. load:

       19…250 Vac: 12 A

        1…24 Vdc: 12 A resistive, 3 A inductive

• Permissible Load per Normally-Open Contact:

       Max. load:

                19…250 Vac: 4 A resistive or inductive

                1…24 Vdc: 4 A resistive, 1 A inductive

       Min. load: P > 50 mW

• Permissible Load per Normally-Closed Contact:

       Max. load:

                19…250 Vac: 2 A resistive, 1 A inductive

                 1…24 Vdc: 2 A resistive, 1 A inductive

       Min. load: P > 50 mW
