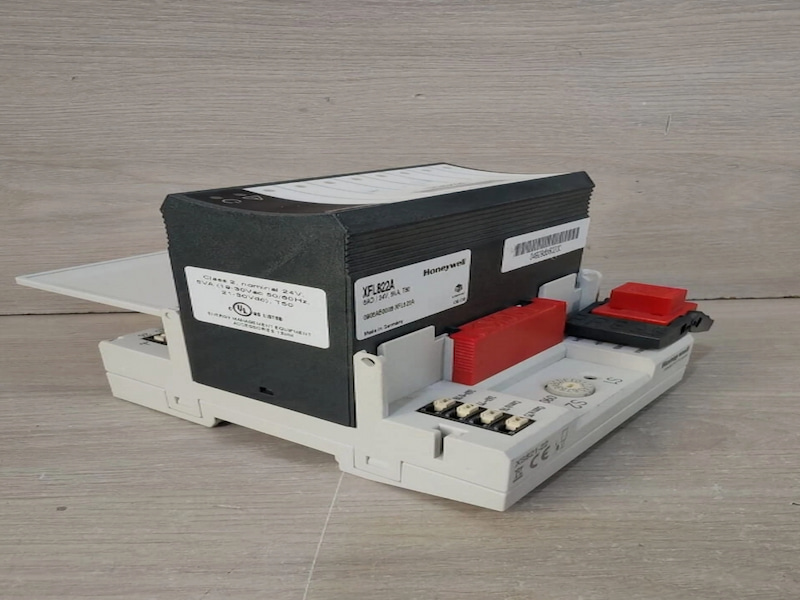

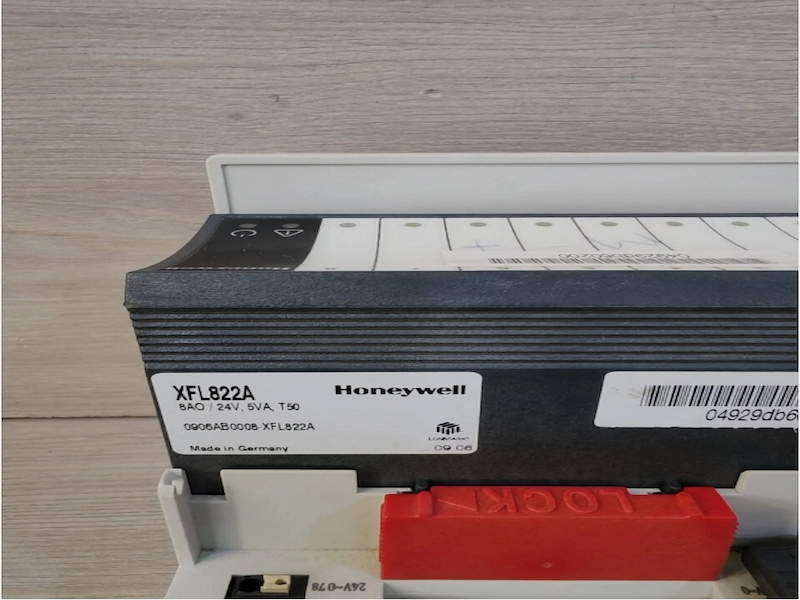

Honeywell XFL822A Analog Output Module (with 8 analog outputs)

Honeywell XFL822A  Analog Output Module (with 8 analog outputs)

Description

The pluggable Excel Web LON Analog Output Module, with 8 analog ouputs, are available in the following versions:

• XFL822A LONWORKS Bus Analog Output Module (without manual overrides)
• XFLR822A LONWORKS Bus Analog Output Module (with manual overrides)

They are installed with the XS821-22 or XSU821-22 Terminal Socket (incl. one connector bridge and one swivel label).

Accessory disconnector module: XS812

Features

• 0…11 Vdc, +/-1 mA
• Floating actuator (requires MCD3)
• Binary output (0 V / 10 V)
• red LED per output (brightness according to signal level)
• Optional versions with manual override potentiometers (Auto, 0…100%; LED flashes in override mode)
• Feedback on manual override signal
• 8-bit resolution
• Configurable safety position for outputs in case of
• communication problems (remain, 0%, 50%, 100%)

Technical Specifications
