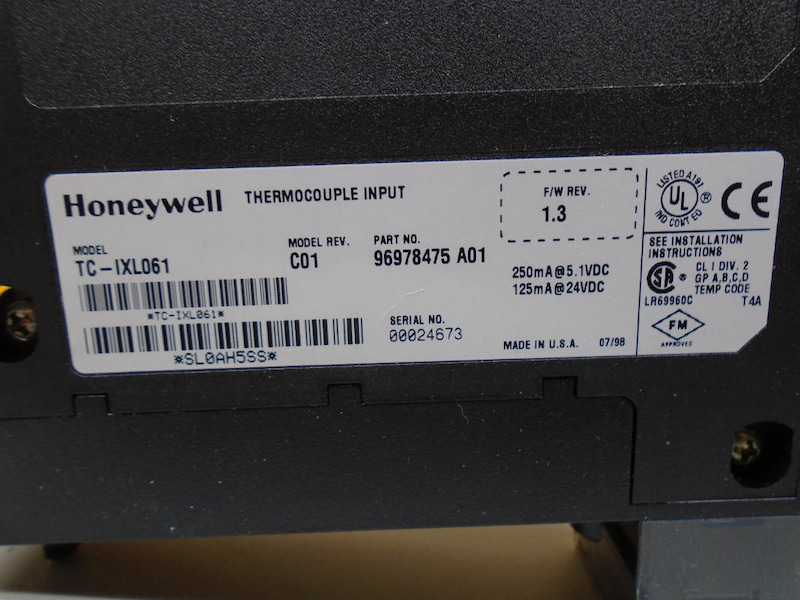

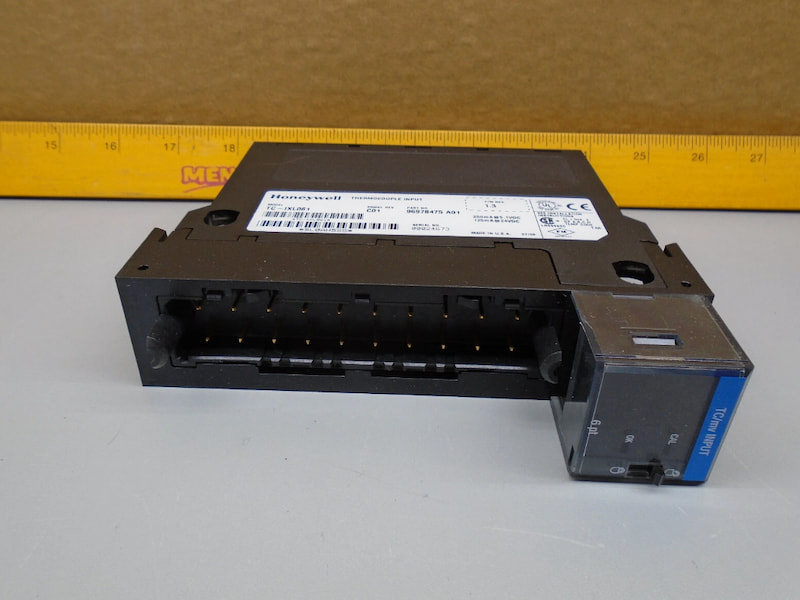

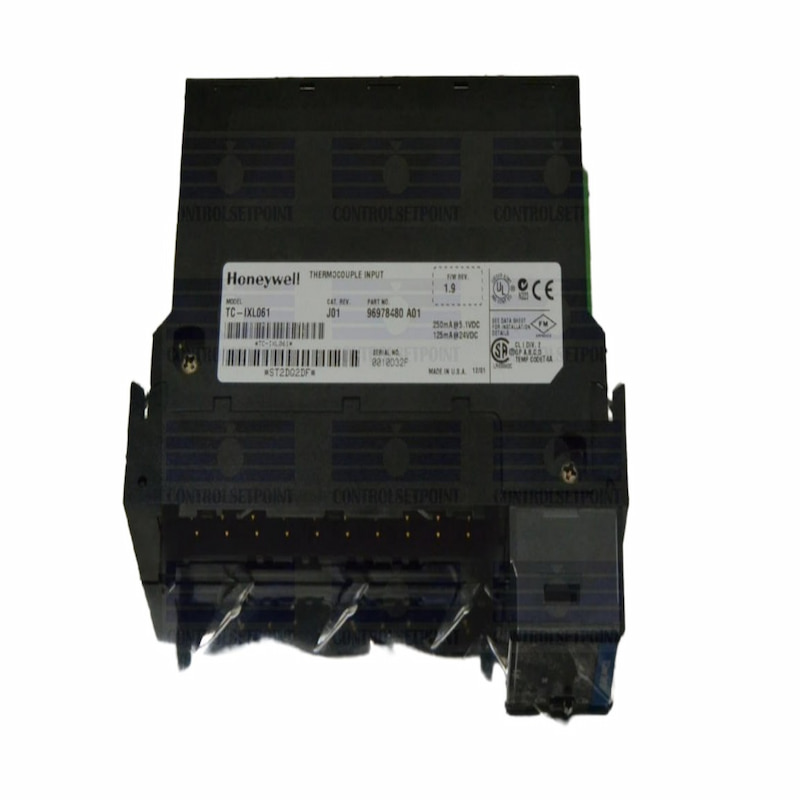

Honeywell TC-IXL061 Thermocouple Input, 6-Point Module

Honeywell TC-IXL061 Thermocouple Input, 6-Point Module

Description

Number of Points：6 channels plus 1 cold junction channel

Nominal input Voltage Ranges：

  -12 mV to +78 mV

  -12 mV to +30 mV (high resolution range)

Supported Thermocouple Types：B, E, J, K, R, S, T, N, C

Accuracy (Cold Junction Sensor)

  Local CJ Sensor Error：From ±0.3 to ± 3.0 °C, depending on channel

  Remote CJ Sensor Eror：± 0.3 °C

Common Mode Rejection：120 dB @ 60 Hz, 100 dB @ 50 Hz

Module Update Rate for All Channels：50 milliseconds

Settling Time to 5% of Full Scale：Less than 80 milliseconds

Open Circuit Detection：Upscale reading

Open TC Detection Time：5 seconds typical

Channel Bandwidth：0 to 15 Hz (-3 db)

Normal Mode Noise Rejection：60 dB @ 60 Hz

RFl immunity：Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz

Overvoltage Capability：120 VAC/VDC continuous at 25C

Gain Drift with Temperature：65 ppm/°C typical

Power Dissipation：4.3 W max

Spare CJR Thermistor Model Number：TC-CJRT01 (part no. 51109433-100)

Isolation Voltage

  Channel to channel：100% tested at 2546 VDC for 1s

  User to system：100% tested at 2546 VDC for 1s

Connection Terminal Blocks：TC-TBNH, 20-position terminal block

Technical Specifications
