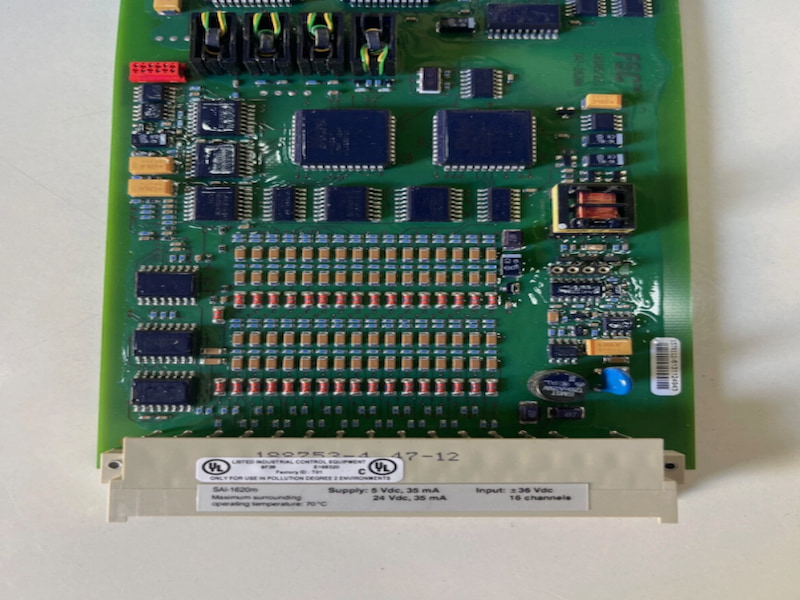

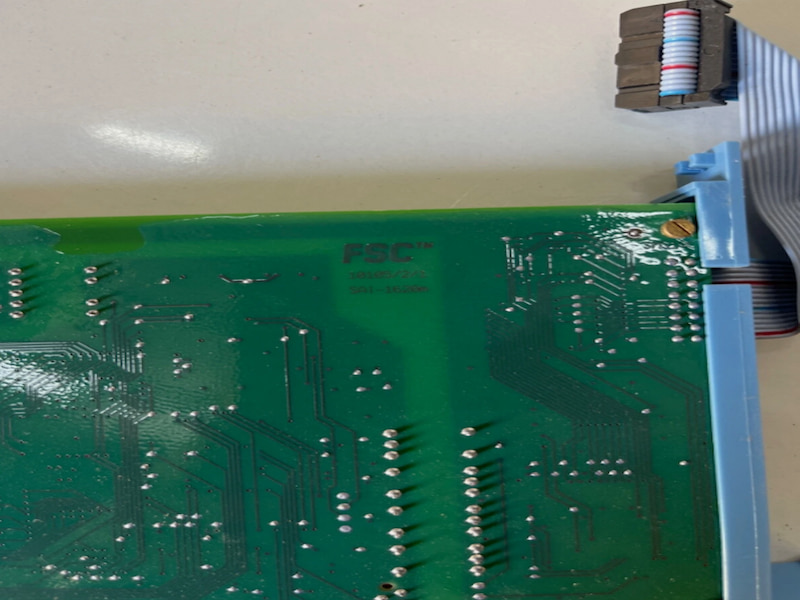

Honeywell FC-SAI-1620M Safe high-density analog input module (16 channels)

Honeywell FC-SAI-1620M Safe high-density analog input module (16 channels)

Description

The analog input module SAI-1620m has sixteen analog inputs (0-4 V) and an external voltage readback input (0-4 V). The sixteen channels are safe (safety class SIL3, in compliance with IEC 61508) and have an isolated analog 0 V common to all sixteen channels.

The field signals for the analog inputs of the SAI-1620m module need to be converted from 0-20 mA to a level suitable for the SAI-1620m module.

You can perform this conversion in two ways:

1. On the field termination assembly module TSAI-1620m, TSHART-1620m, TSGAS-1624 or TSFIRE1624
2. Analog input conversion module BSAI-1620mE, located on programming connector (Px) on the back of the IO backplane in the 19-inch chassis

Analog input signals, such as thermocouple or PT-100, can only be used after conversion to 0(4)—20 mA with a dedicated converter (and a TSAI-1620m or BSAI-1620mE module).

Approvals: CE, TUV, UL, CSA, FM

Space requirements: 4 TE, 3 HE (= 4 HP, 3U)

Number of input channels: 16

Input range: 0-4.1 V

Input resistance: > 1 MΩ

Maximum load capacitance: 100 nF

A/D converter: 12-bit

A/D converter inaccuracy: ± 1 LSB

Module inaccuracy: < 0.25%

Absolute max. input signal: ± 36 V DC

Cross talk between channels: > 60 dB³

External voltage read back:

  Range 0-4.1 V

  Input resistance Typically 1 MΩ

Module connector code: Holes  A5, C25

Chassis connector code: Large pins  A5, C25
