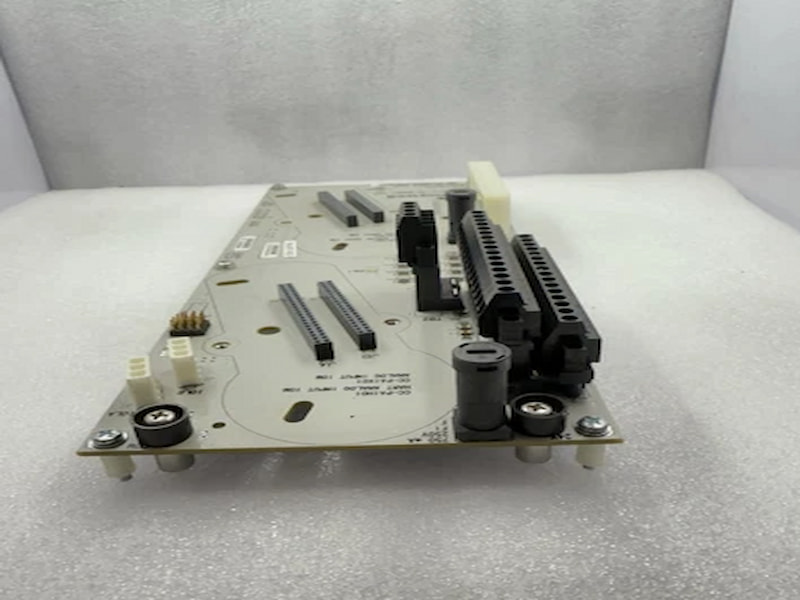

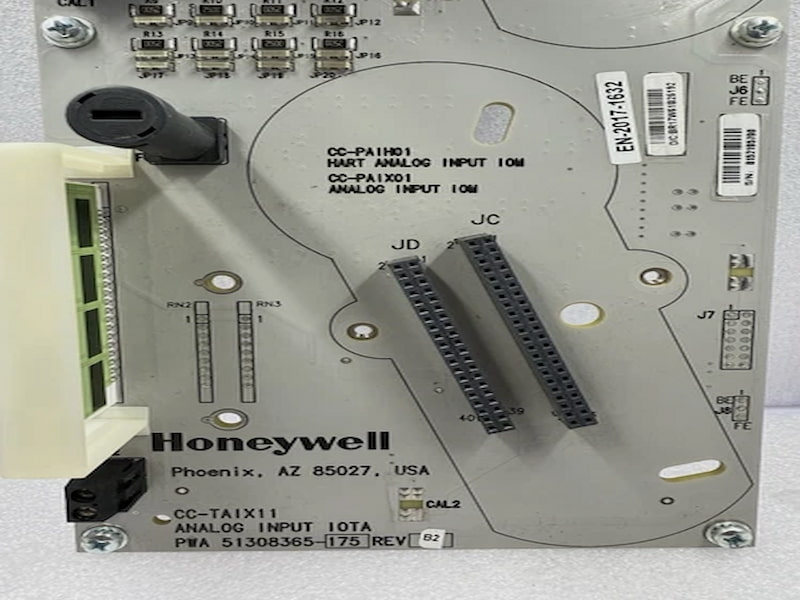

Honeywell CC-TAIX11 Analog Input IOTA Redundant

Honeywell CC-TAIX11 Analog Input IOTA Redundant

Description

Product Type: Analog Input lOTA Redundant

Input Type: Voltage, current (2-wire or self-powered transmitters)Input Channels: 16 Channels (12 Single Ended / 4 Differential)Common Mode Rejection Ratio (dc to 60 Hz): 70 dB

Common Mode Voltage (dc to 60 Hz): -6 to +5 V peak

A/D Converter Resolution: 16 bits

Input Range 1: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)

Normal Mode Rejection Ratio (at 60 Hz): 19 dB

Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 HzMaximum Normal Mode Input (differential inputs, no damage): ±30 Volts

Crosstalk (dc to 60 Hz, channel-to-channel): -60 dB

Input lmpedance (voltage inputs): > 10 M powered

Input Scan Rate: 50 ms

Hardware Accuracy (@ CMV = 0 V): +0.075% of full-scale (23.5°+2°C), +0.15% of full-scale (0 to 60°C)

Transmiter field Power Conditioning: individually Protected Current limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusingrequired

Technical Specifications
