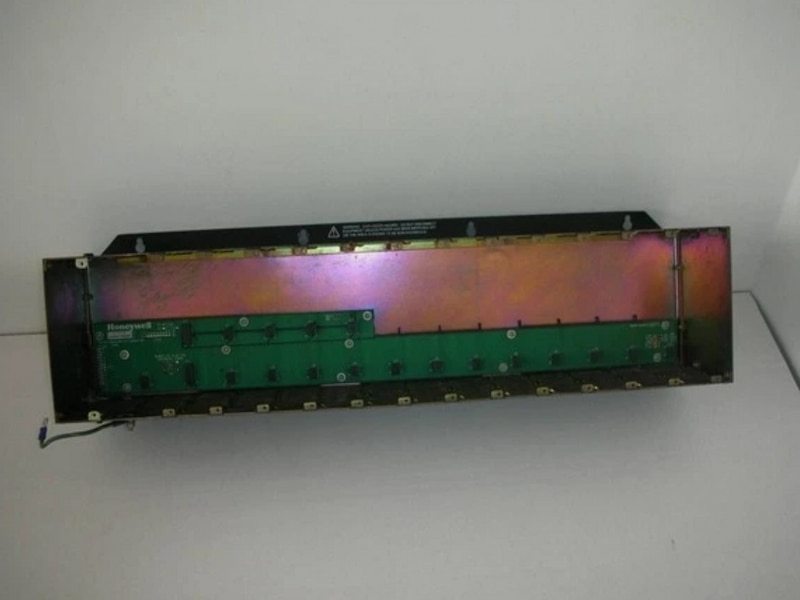

Honeywell 900R12-0101 12 I/O slot Rack

Honeywell 900R12-0101 12 I/O slot Rack

Description

Model Number: 900R12-0101

Slot Capacity: 12 1/0 module slots

Power supply: 5/24 VDC

Mounting Options: DiN rail or panel mount

Operating Temperature: -40°C to +85°C

Material: Flame-retardant PVC (UL94-V0)

Environmental Rating: G3 harsh environment conformal coating

Certifications: CE, UL, CSA, ATEX, FM (Class l Div. 2)

Features

Modular Expansion: Supports a wide range of analog, digital, and communication modules

Redundant Power Support: Ensures uninterrupted operation in critical applications

.Hot-swap Capability: Modules can be inserted or removed under power without system shutdown

Failsafe Functionality: User-defined output states in case of communication loss

LED Indicators: Channel and module status lights for diagnostics

Color-Coded l/0 Labels: Removable labels for easy identification and wiring

Robust Construction: Built to withstand vibration, shock, and extreme temperatures

Flexible lntegration: Compatible with ControlEdge Hc900 controllers for diverse automation needs

Technical Specifications
