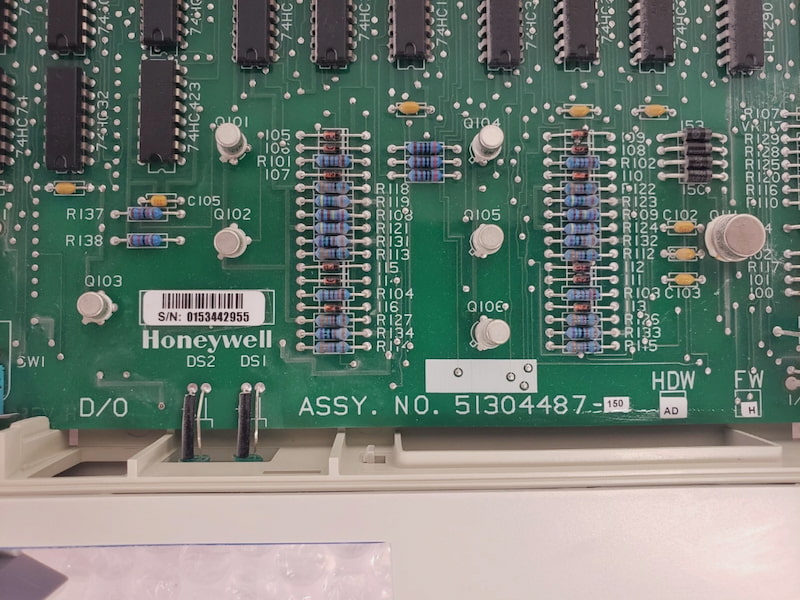

Honeywell 51304487-150 Digital Output Card

Honeywell 51304487-150 Digital Output Card

Description

The DO IOP drivers are open collector (current sinking) transistors connected to logic ground. The isolated 24 Vdc Digital Output (DO) FTAs provide 32 isolated digital outputs. The output drivers in 51304487-150 are optically isolated from PM, APM, or HPM common and can drive loads requiring up to 500 mA at 24 Vdc.

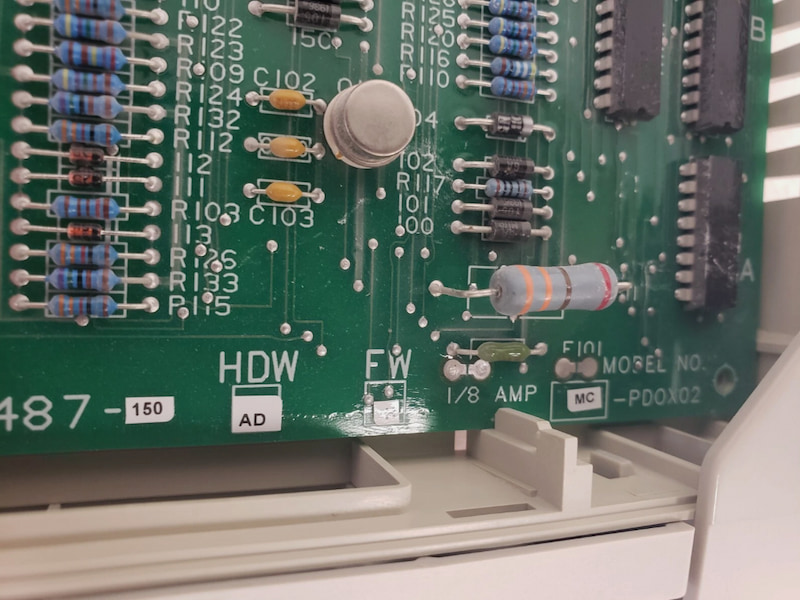

Digital Output Processor MC-PDOX02

CE-compliant, Conformal Coated

Redundancy not supported

Output Channels: 16

Available Output Types:

• 24 Vdc Nonisolated
• 24 Vdc Isolated
• 3-30 Vdc Solid-State
• 31-200 Vdc Solid-State
• 120/240 Vac Solid State
• 120 Vac/125 Vdc Relay
• 240 Vac/125 Vdc Relay

Technical Specifications
