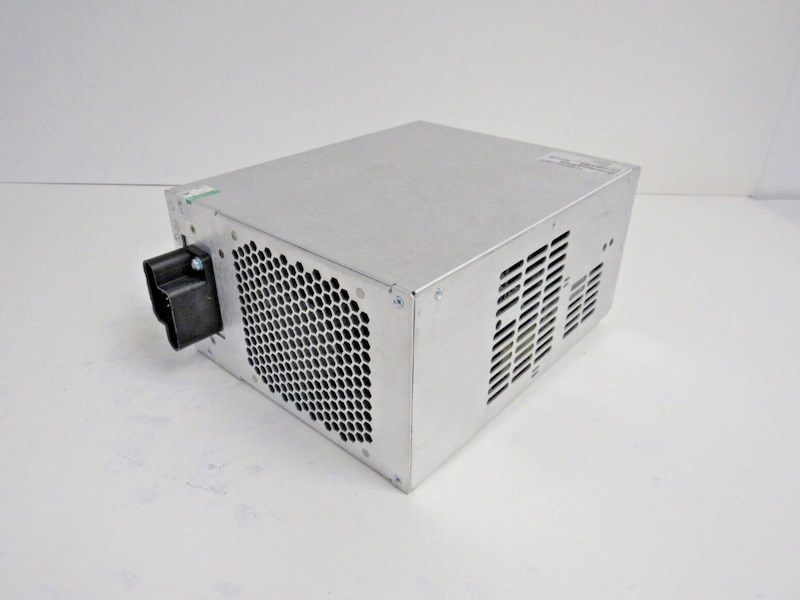

Honeywell 51198947-100G UCN PM Power Supply

Honeywell 51198947-100G UCN PM Power Supply

Description

Input Voltage：85-264 VAC (wide range)

Output Voltage：25.25 VDC (AC mode), 24.25 vDC (battery mode)

Output current：10 A (nominal, Ac mode)

Output Power：250 W (max)

Battery support：48 vDC backup input

Frequency Sync：6 VAC @ 35 mA (line frequency output)

Efficiency：>90% (high-efficiency design)

Protection：Over-voltage, over-current, short-circuit

Operating Temp：-40°C to +85°C

Features

• Wide Voltage Compatibility: Supporting global power grid standards (85-264 VAC), the Honeywell51 198947-100G adapts to unstable industrial environments, delivering stable output without the need foradditional voltage regulators.
• Dual Power Supply: Compatible with both AC mains power and 48V battery backup, seamlessswitching ensures zero system interruption, making it ideal for critical control nodes.
• Intelligent Protection: Built-in overvoltage, overcurrent, and short-circuit protection, combined withefficient heat dissipation, significantly reduces failure rates.
• Line Frequency Synchronization: Providing a 6VAC synchronization signal ensures multi-deviceclock coordination and improves distributed system accuracy.
• Honeywell 51198947-100G Application examples
• Oil Refinery (Middle East): Saudi Aramco Refinery deployed hundreds of Honeywell 51198947-100Gs in UCN cabinets to power cracker control modules, achieving zero power failures in 10 years.
• Automobile Production Line (Germany): Volkswagen factories integrated Honeywell51198947-100Gs into robotic control cabinets, supporting 24/7 continuous welding and assembly, withredundant design to prevent production line downtime.

Technical Specifications
