Functional Description

The EPM 9700 is ideal for revenue and power quality monitoring in a variety of applications, including utility

substations, renewables, advanced industrial manufacturing, datacenters and hospitals. It provides a number

of key features and benefits, as outlined below.

· Updated IEC 61000-4-30 Class A Edition 3 Power Quality Measurement and EN50160 Reporting Support

· High resolution waveform recording (up to 1024 samples/cycle) and high accuracy 0.06% watt-hour energy

metering with demand and time of use capture

· Improved metrology uses high and low gain sensors for high 0.06% accuracy as well as installation

flexibility using both 1A and 5A secondary CTs

· Large 1.2GB logging memory makes it possible to log years of captured data

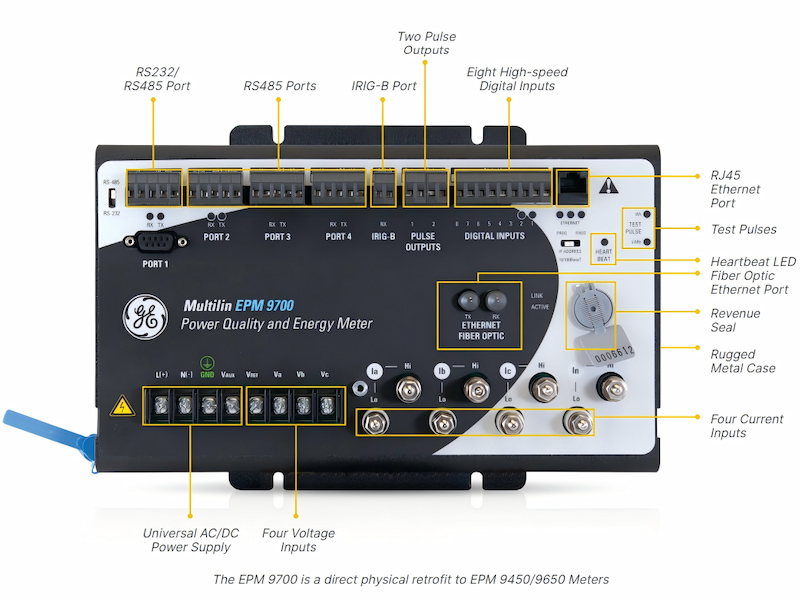

· Easy integration with standard 6 ports (4 serial/2 Ethernet) of flexible communications options and protocol

support for simultaneous Modbus and DNP3 communications

· Post installation upgradeable for future requirements with modular communications external I/O and

software option functionality upgrades

· Separate meter unit and optional display for flexible and easy installation

· Direct upgrade for EPM 9450/9650 with same wiring/cutout for meter unit/display installation
