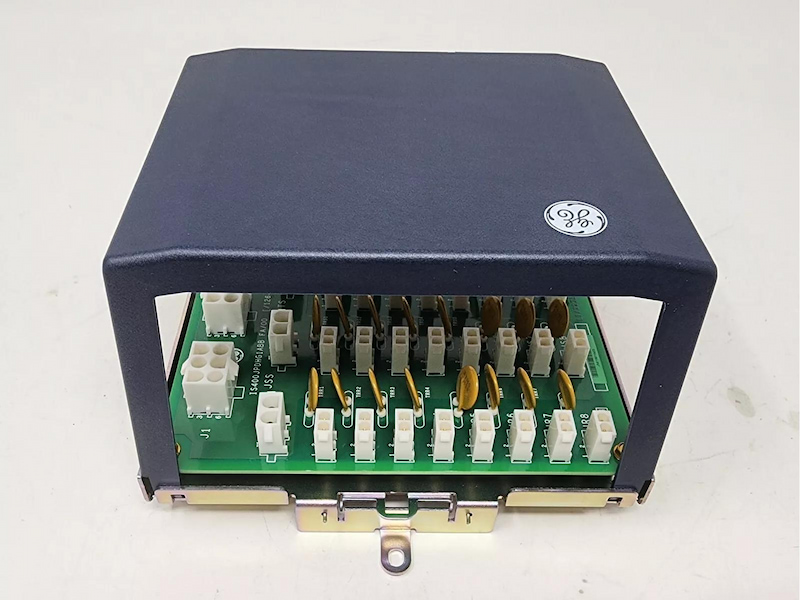

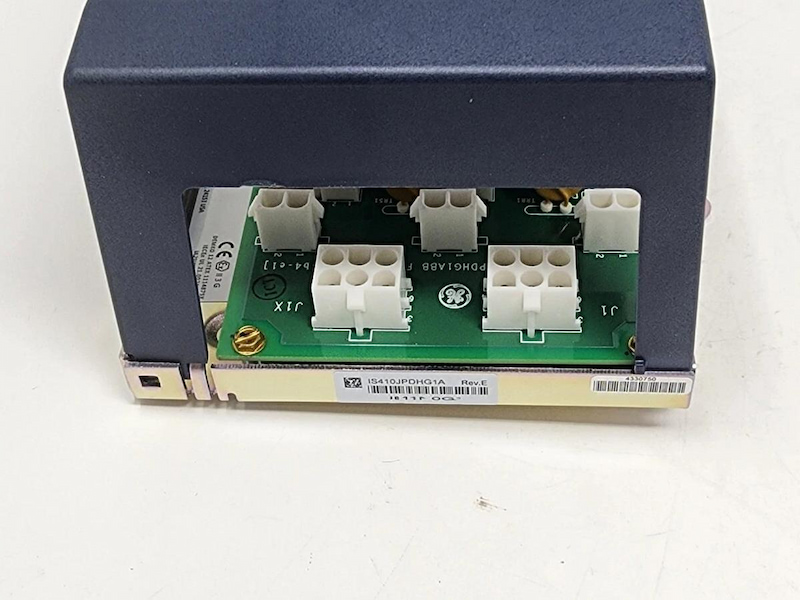

GE IS410JPDHG1A Pack Power Din Rail Module

GE IS410JPDHG1A Pack Power Din Rail Module

Functional Description

The IS410JPDHG1A with JPDH on DIN-rail base, it's provided 24/28 Vdc control power and 24/48 Vdc I/O

Wetting power distribution, JPDG or JPDS to J1 plug, or daisy-chained to another JPDH via J1X plug. Three

sets of eight I/O packs (R/S/Tcontrol power groups), three IONet switches. Eight each for R/S/T groups; I/O

pack paths have self-resettable fuses. Self-resettable fuses detected by loss of I/O pack communications.

Features

• Automatic power monitoring and diagnostics to the controller, which alerts operations and maintenance teams and eliminates

manual programming and extra I/O for power monitoring

• Proven power distribution scheme with coordinated fault protection and isolation

• Segregation of control and contact wetting power to avoid field wiring issues from damaging control components

• Flexible redundancy schemes for most applications that support Dual or TMR options

• Simplified power schemes to reduce panel fabrication, assembly, and test time and shorten the panel build phase of projects

Technical Specifications
