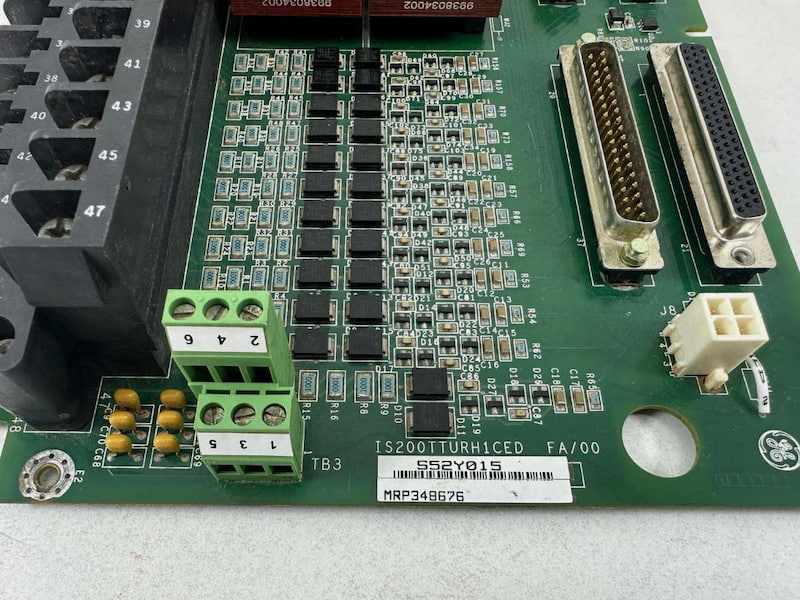

GE IS200TTURH1CED Turbine Termination Board

GE IS200TTURH1CED Turbine Termination Board

Description

GE IS200TTURH1CED is a dedicated main engine control terminal board for the GE Mark VI/Mark VIe control system. It is responsible for centralized collection, distribution and isolation of on-site signals, and serves as the core interface between the main engine system and the control unit.

This module is equipped with standard terminals, relays and signal conditioning circuits, supporting simplex and TMR redundant architectures. It can stably handle digital, analog and protection signals and is suitable for the long-term operation of power plant gas/steam turbines.

Features

• Suitable for GE Mark VI/Mark VIe Speedtronic control system
• Centralized input and output of engine control signals
• Built-in relays, transformers and signal isolation circuits
• Supports Simplex and TMR triple redundancy architectures
• Standard screw terminals, convenient wiring and maintenance
• Industrial-grade high reliability, suitable for harsh industrial environments

Technical Specifications
