GE IS200ESYSH1A I/O interface module

GE IS200ESYSH1A I/O interface module

Description

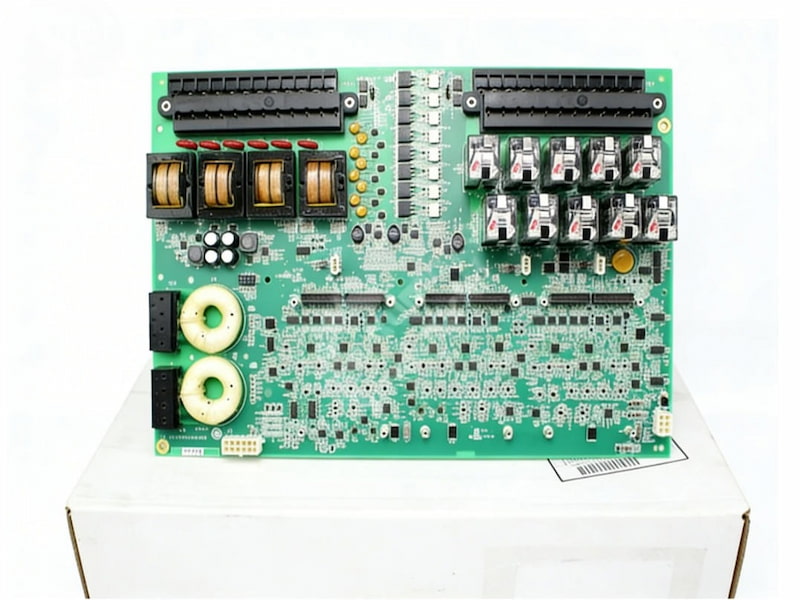

GE IS200ESYSH1A is the TMR system I/O interface board (ESYS board) of the GE EX2100e excitation control system. As the core signal interaction unit of the system, it is responsible for connecting external PT/CT, sensors, actuators and the main controller, and realizes precise collection and control command output of key excitation signals such as voltage, current and digital quantities.

The module adopts a three-mode redundancy (TMR) architecture design, which is suitable for industrial-grade harsh conditions. It communicates with the system at high speed through a dedicated backplane and provides reliable I/O channels and signal processing support for excitation regulation, voltage stability and system protection of the generator set.

Features

• Adaptation system: GE EX2100e excitation control system
• Product type: TMR system I/O interface board (ESYS)
• Architecture design: Triple modular redundancy (TMR), high reliability
• Signal processing: Supports PT/CT, analog, and switch signals
• Communication method: Backplane high-speed bus communication
• Operating conditions adaptation: Industrial-grade wide temperature range, strong anti-interference capability
• Installation form: Modular card insertion, standard cabinet installation
• Application scenarios: Generator set excitation control, voltage regulation

Technical Specifications
