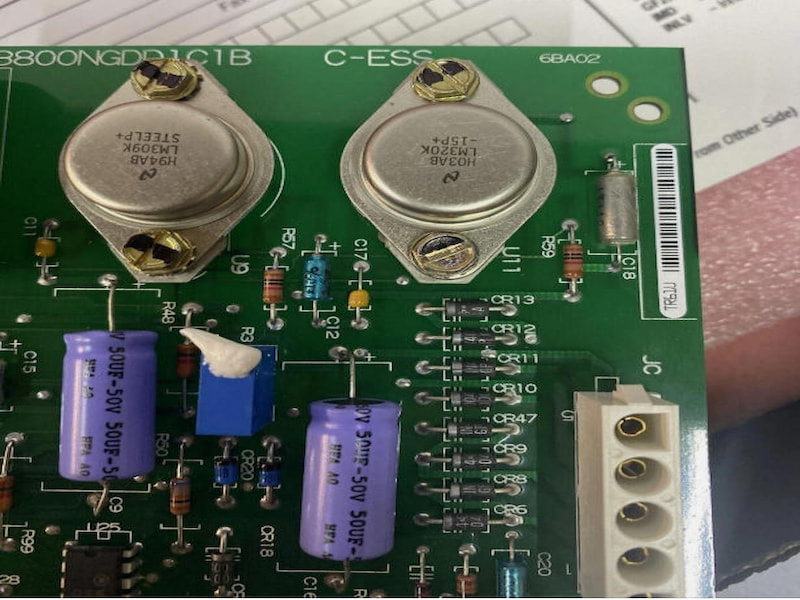

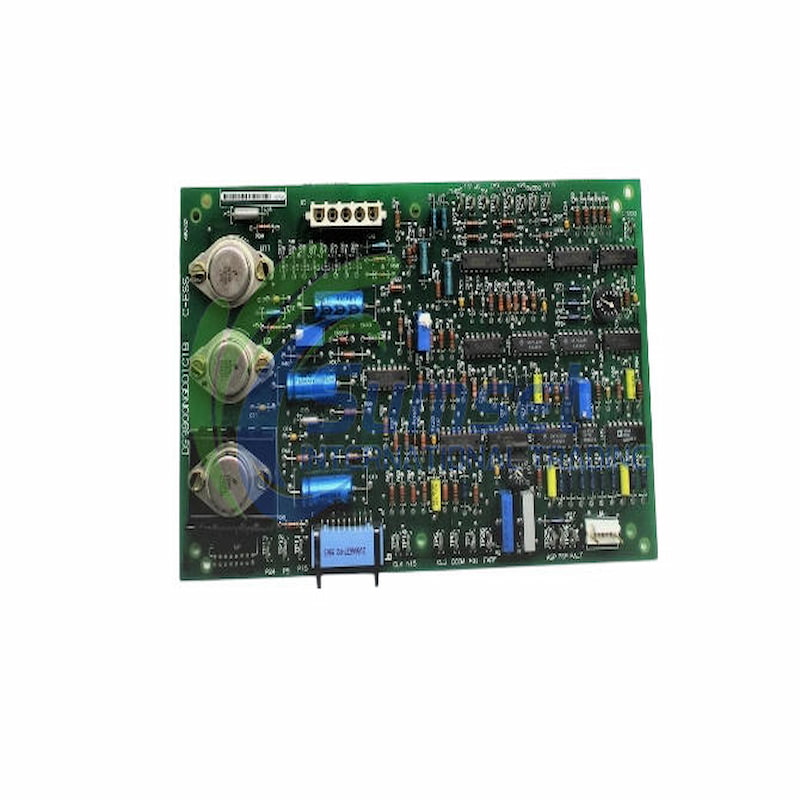

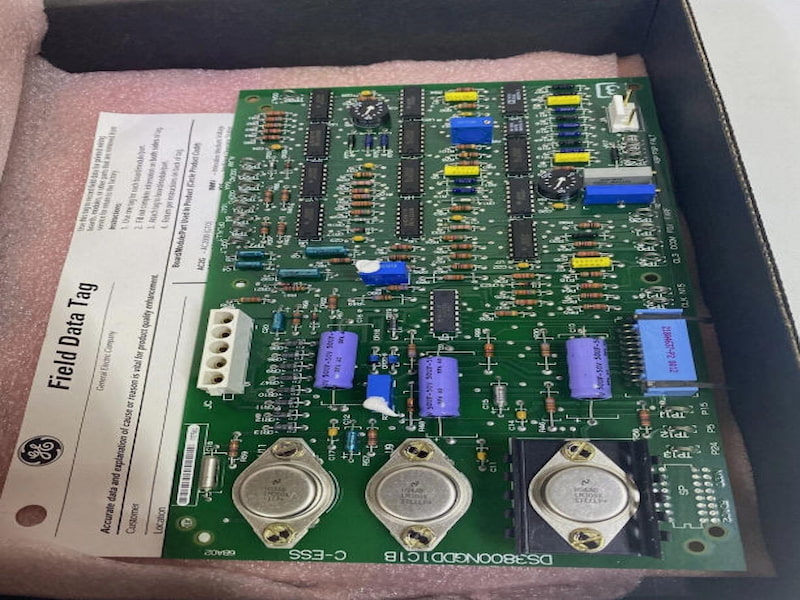

GE DS3800NGDD1C1B Field ground detector card

GE DS3800NGDD1C1B Field ground detector card

Description

The GE DS3800NGDD1C1B is a dedicated excitation grounding detection board for the Speedtronic Mark IV gas turbine control system. It is specifically designed for power generation equipment such as gas turbines and steam turbines, and is used to monitor the grounding fault status of the excitation circuit in real time.

This module precisely detects insulation abnormalities of the excitation winding to ground, quickly identifies grounding faults and triggers system protection, ensuring the stable operation of the Mark IV control system and meeting the safety monitoring requirements of key industrial scenarios such as power plants and energy stations.

Features

• Adapted for GE Speedtronic Mark IV turbine control system
• Core function: Ground fault detection and monitoring of excitation circuit
• Plug-and-play PCB board design, compatible with the backplane of Mark IV system
• Provide fault status feedback, support rapid protection and diagnosis of the system
• Designed specifically for industrial-grade harsh conditions to ensure long-term reliable operation
• Suitable for control scenarios of power generation equipment such as gas turbines and steam turbines

Technical Specifications
