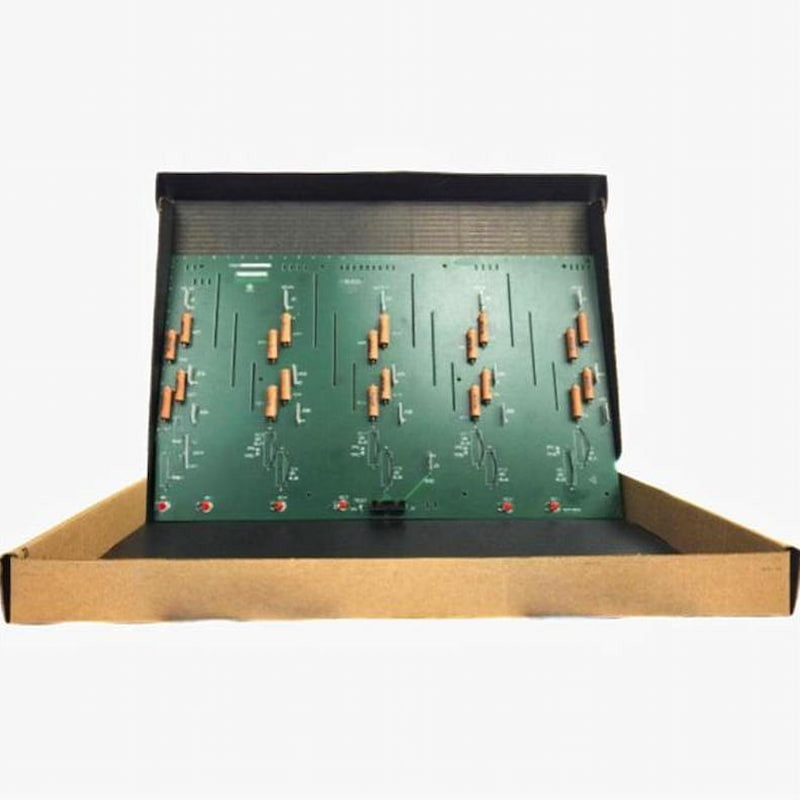

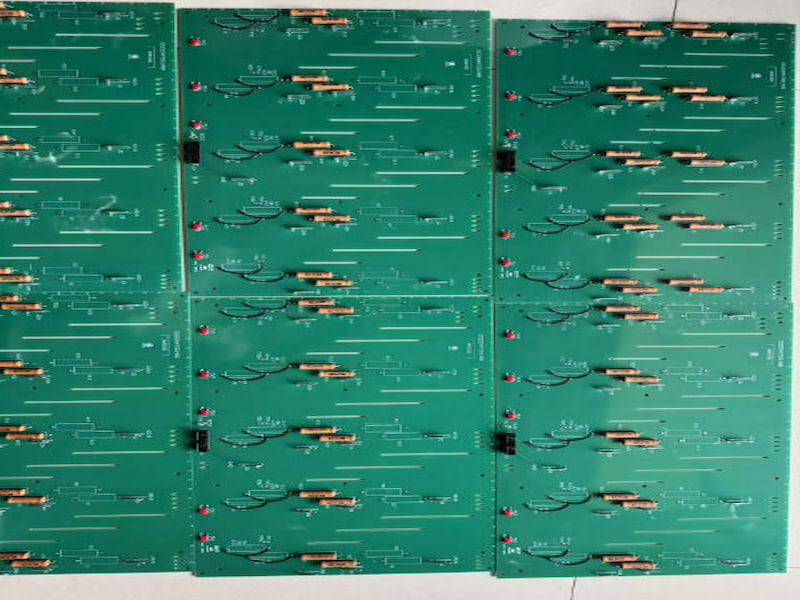

GE DS200NATOG2A Voltage FB Scaling Board

GE DS200NATOG2A Voltage FB Scaling Board

Description

The GE DS200NATOG2A is a voltage feedback scaling board suitable for Speedtronic Mark V and LS2100 starting systems. It mainly performs voltage division and attenuation as well as signal conditioning on the AC and DC voltages of the SCR rectifier bridge, providing precise and stable voltage feedback signals to the control system, ensuring reliable operation of the speed regulation and excitation control of the unit.

This board adopts a modular industrial design, supports configuring the voltage attenuation ratio through jumpers, has overvoltage protection and anti-interference capabilities, and can be directly connected to the system backplane communication, suitable for the harsh operating environments of gas turbines, generator sets, and other equipment.

Features

Compatible with GE Speedtronic Mark V and LS2100 control systems

Realize SCR bridge voltage attenuation, signal scaling and feedback conditioning

Flexible jumper configuration, supporting monitoring of different voltage levels

Integrated overvoltage protection, enhancing operational stability

Modular structure, facilitating installation and maintenance

Industrial-grade design, suitable for harsh conditions such as power plants and energy industries

Technical Specifications
