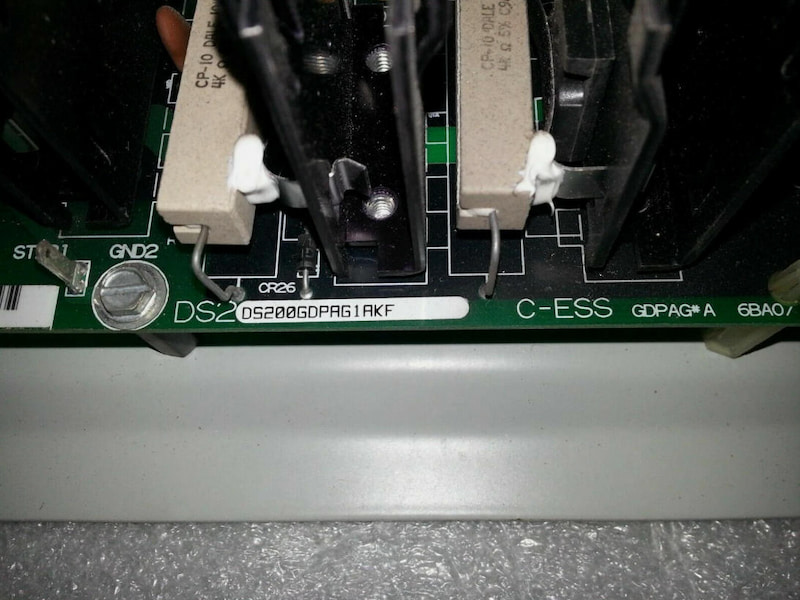

GE DS200GDPAG1AKF High Frequency Power Supply Board

GE DS200GDPAG1AKF High Frequency Power Supply Board

Description

The GE DS200GDPAG1AKF is a high-frequency power board specifically designed for the GE Mark V Speedtronic gas turbine control system. It mainly provides stable and isolated multi-channel power outputs for the system driver and excitation circuit. The module is compatible with both AC and DC inputs, with an output power of up to 600-700W. It integrates rectification, filtering, voltage stabilization, and a 27kHz inverter circuit to ensure reliable power supply for the control level and power level circuits.

This power board incorporates input electrical isolation, overvoltage protection, and status indication circuits. It provides real-time feedback of the operating status through 4 LEDs and 2 neon lights. It can directly be adapted to the Mark V series backplane and expansion board, providing multiple controlled power sources such as 120VDC and 50VAC for CPU, I/O modules, and excitation components, meeting the high reliability power supply requirements for industrial turbine control.

Features

• Adaptation system: GE Mark V Speedtronic turbine control system
• Product type: High-frequency power supply board
• Input specifications: Dual compatibility of 80-132 VAC / 105-140 VDC
• Output power: Stable output of 600-700W
• Core output: 120 VDC, 50 VAC, multiple control power supplies
• Key circuits: 27kHz inverter, input rectification and filtering, electrical isolation
• Status indication: 4×LED + 2×neon lights for operation diagnosis
• Application scenarios: Gas turbines, excitation systems, industrial drive control

Technical Specifications
