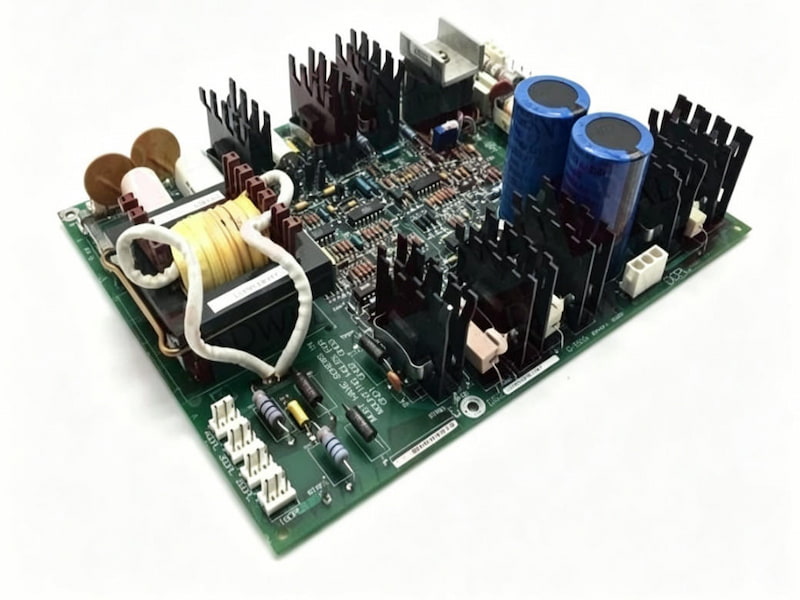

GE DS200GDPAG1AGD High Frequency Power Supply Board

GE DS200GDPAG1AGD High Frequency Power Supply Board

Description

The GE DS200GDPAG1AGD is a gate drive high-frequency power board of the GE Speedtronic Mark V system. It is specifically designed for excitation and drive systems, providing stable high-frequency power supply for IGBT gates.

This power board has a power capacity of 600-700W, supports wide-range AC/DC input, integrates rectification, voltage stabilization, inverter and protection circuits, and comes with LED status indication. It is suitable for gas / steam turbine control scenarios.

Features

The Mark V gate drive power board provides a high-frequency output of 600-700W.

It supports a wide input range of 80-132VAC/105-140VDC.

It integrates a 27kHz inverter and a 50VAC output transformer, ensuring stable power supply.

It has onboard LED and neon light indicators for easy status monitoring and fault troubleshooting.

It has multiple built-in protection circuits, suitable for industrial harsh conditions.

It is compatible with GE EX2000/EX2100 excitation systems and can be installed and used directly.

Technical Specifications
