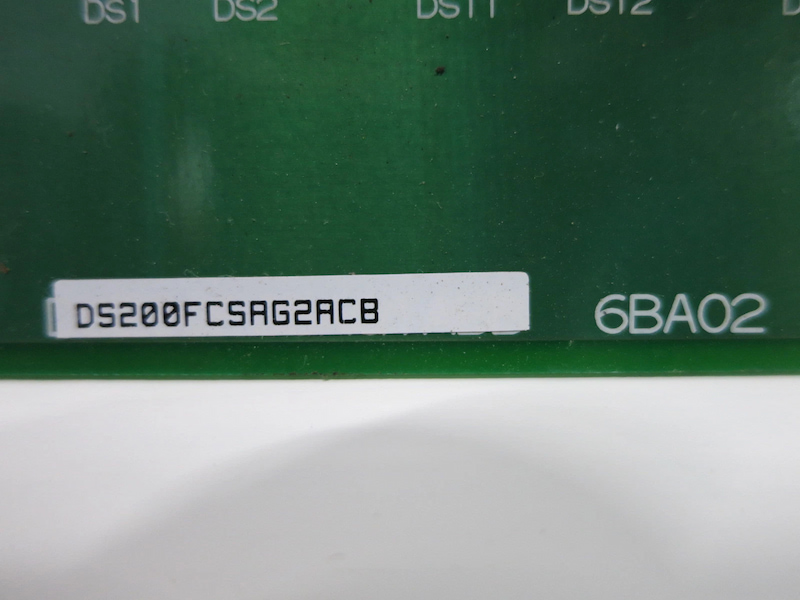

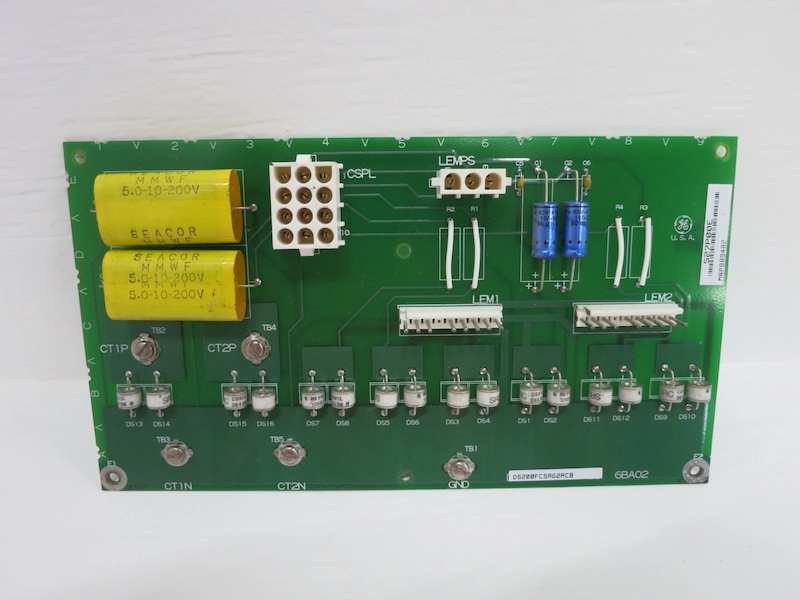

GE DS200FCSAG2A Current Sensing Feedback Board

GE DS200FCSAG2A Current Sensing Feedback Board

Functional Description

The DS200FCSAG2A Current Sensing Feedback Board (FCSA) is used in conjunction with the control power

supply (CPS). This board accepts the CPS voltage supplies of 5, 12, 15, and 24 volts. This model is installed in

the Power Conversion Cabinet for Static Starters. This model is used in conjunction with a Control Power

Supply when in operation (CPS).

The CPS will produce several voltage levels during the operation of both the CPS and the FCSA, which are

five, twelve, fifteen, and twenty-four volts. These voltages are produced specifically for the FCSA board and

VME card rack. A current-sensing feedback board is a circuit board designed to measure and provide

feedback on the electric current flowing through a circuit. It typically consists of current sensing components,

such as shunt resistors or current transformers, along with signal conditioning circuitry and an output

interface.
