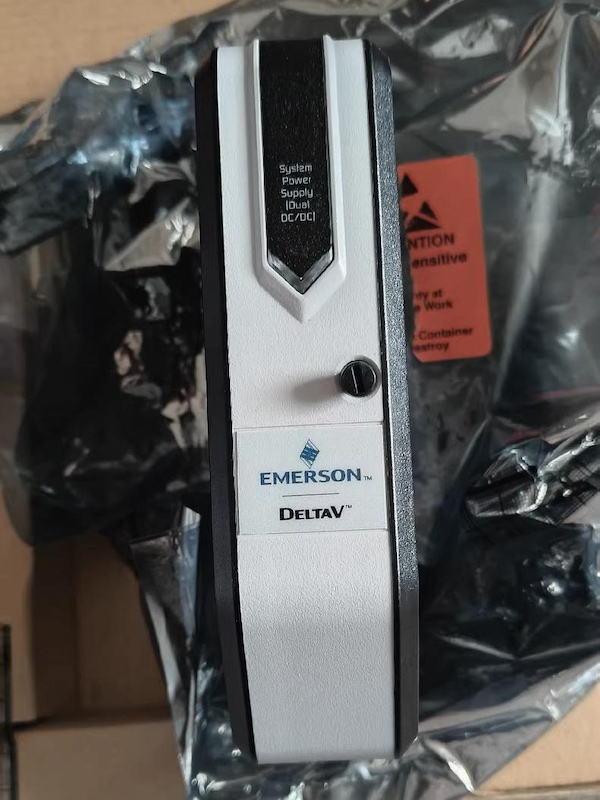

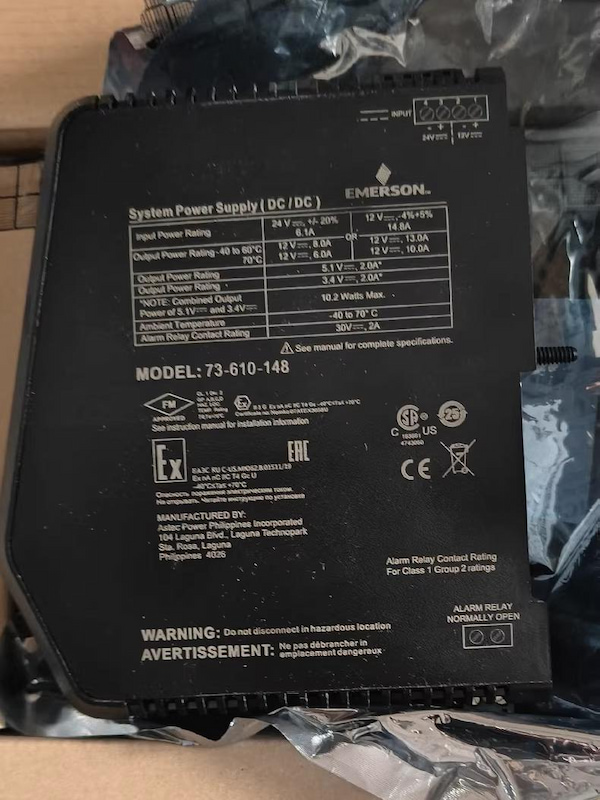

Emerson KJ1501X1-BC4 13P0063X052 System Dual DC Power Supply

Emerson KJ1501X1-BC4 13P0063X052 System Dual DC Power Supply

Functional Description

The KJ1501X1-BC4 DC/DC system power supply is used to power the DeltaV controllers and I/O interfaces

from either 12 or 24V DC bulk power and can be mounted next to the controller on a Power/Controller

carrier and provide the 5 and 3.3V DC required by the controller.

It also provides 12V DC power to the I/O interfaces and supplies up to 8 Amps when powered from a 24V DC

Bulk power supply.

Key Features and Benefits

· Plug-and-play: Easy to install and integrate into DeltaV systems.

· Modular architecture: Enables expansion of power capacity or redundancy.

· Load-sharing capabilities: Allows for balanced power distribution.

· I/O accuracy: Provides consistent and accurate power to I/O subsystems and controllers.

· Power failure notification: Alerts users of power supply or input voltage failures.

· System and field power isolation: Provides electrical isolation between system and field power sources.

Technical Specifications
