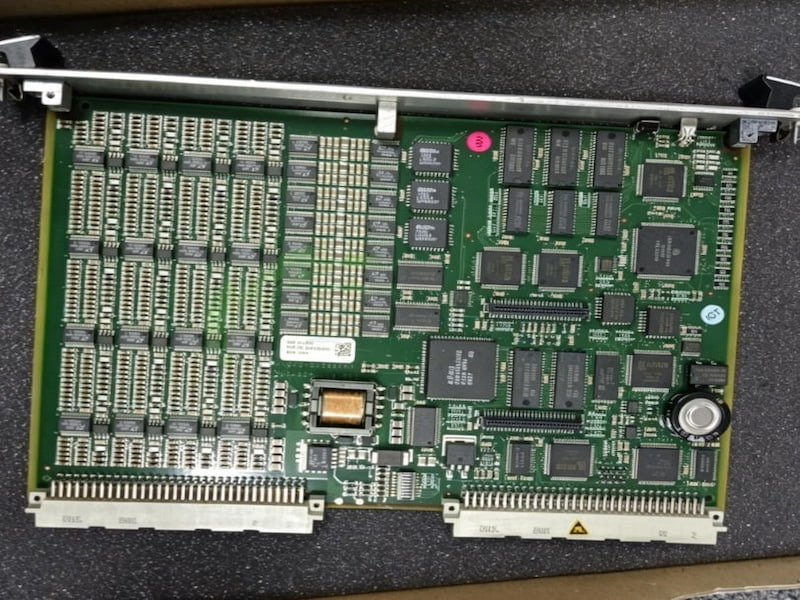

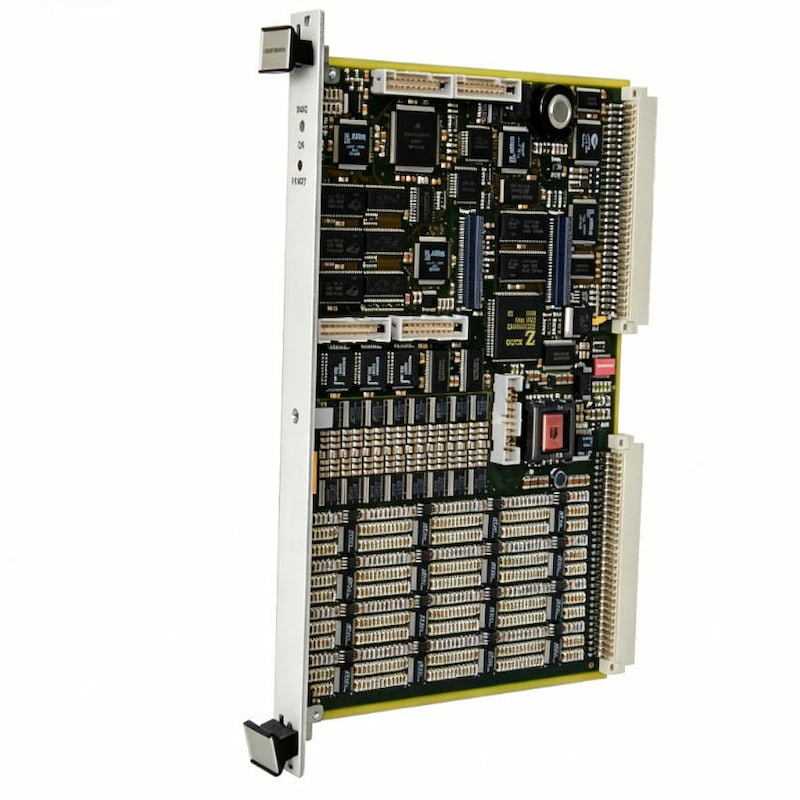

CMC16 (Material Number 200-530-012-012) is a 16-channel intelligent acquisition card specifically designed for industrial rotating unit condition monitoring. As the core data acquisition unit at the system front end, it can concurrently collect dynamic and static on-site signals such as vibration, speed, pressure, and temperature. Each channel is independently equipped with filtering and analog-to-digital conversion circuits. The onboard processor is relied upon to perform real-time spectral and time-domain analysis.

The module is compatible with the standard 6U rack VME bus architecture. It supports two sampling modes: synchronous order tracking and asynchronous fixed-frequency. It comes with local data cache and transmits monitoring data to the upper level via Ethernet or RS485 bus. It has multi-level alarm and trend recording functions and is widely used in online fault diagnosis scenarios for equipment such as steam turbines, compressors, and gas turbines.

Features

16 independent programmable acquisition channels, the first 4 channels can be configured for speed key phase input

Each channel is equipped with programmable anti-interference filtering and a 14-bit high-precision ADC, with a maximum sampling rate of 51.2kHz

On-board DSP operation, with a maximum 3200-line high-resolution FFT spectrum analysis

Single channel supports 10 band parameters and 6 sets of hysteresis threshold alarm settings

Timed and abnormal trigger multi-mode data storage, with a built-in 1MB power-off cache

Supports two communication methods: Ethernet and RS485, suitable for remote data upload

Rack-mounted hot-swappable design, with three-color LED on the panel for intuitive display of operating status

-25℃ to +65℃ wide temperature range operation, with anti-interference industrial hardware design

Technical Specifications
