Bently Nevada SCOUT220-IS Portable Data Collector

Bently Nevada SCOUT220-IS Portable Data Collector

Functional Description

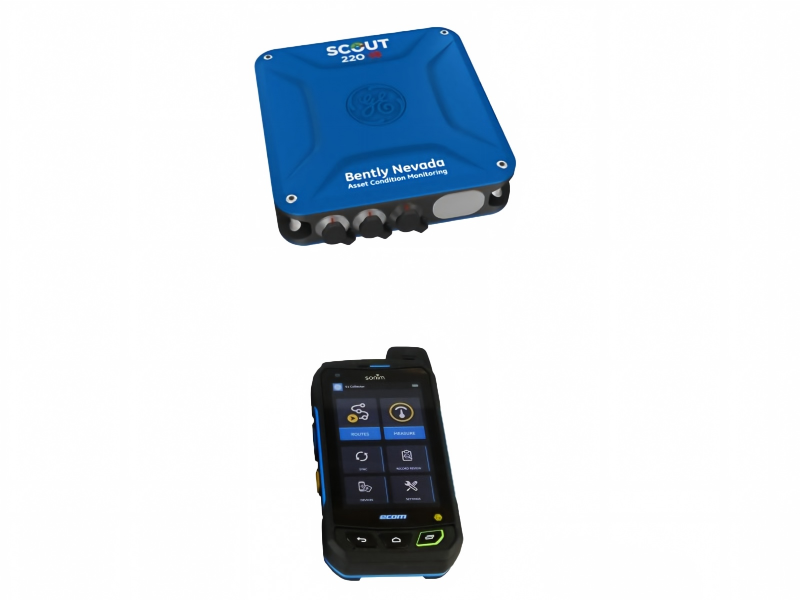

SCOUT220-IS is an Intrinsically Safe portable data collector solution designed for hazardous environments.

You can use this small form-factor,rugged device to take vibration recordings and upload the collected data

for detailed analysis in System 1* Evolution.

The overall system consisting of the data collector and the industrial handheld is rated ATEX Zone 1 /Zone 21

for non conductive dust,and CSA Class 1 Zone 1.The SCOUT220-IS data collector also gives you access to

sites requiring hot work permits.

The data collector works in tandem with the S1 Collector app which runs on an industrial smartphone

handheld device. You can collect vibration data,take pictures,send text messages, check your email,make

phone calls and run other apps all on a single device.

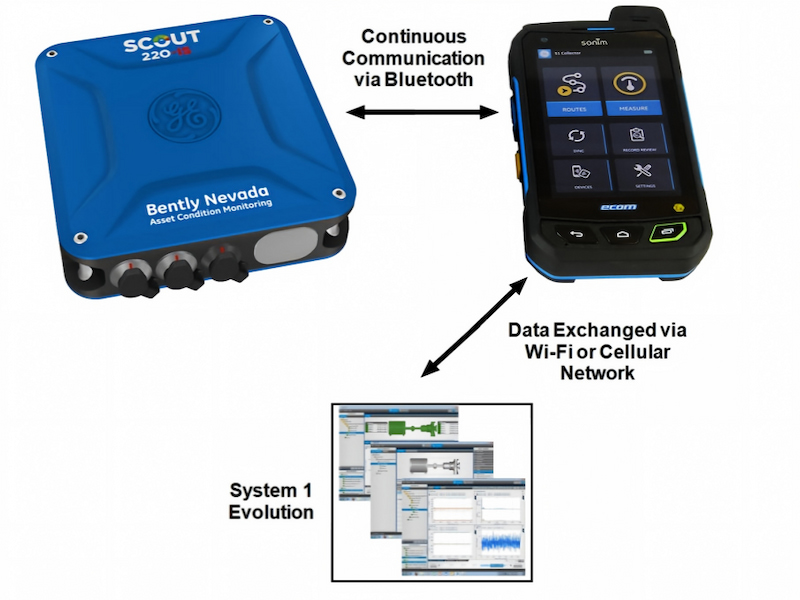

The data collector uses Bluetooth to communicate with the industrial handheld which is also rated for

hazardous environments.The S1 Collector app exchanges data with System 1 Evolution via Wi-Fi or a cellular

network.

You can set up your routes in System 1 Evolution and sync up the data with the app using remote

communication servers.The industrial handheld eliminates the need for a PC or other software packages at

the data collection site.It is the only device you need to receive routes and send collected data from

the field.

You can take recordings from a predefined route as well as off-route recordings that are not part of a route

sequence. Off-route recordings may be necessary if a machine's vibration pattern does not meet your

expectations.

The data collector has an anti-static neck strap with Sensor Keeper as well as detachable safety breakaways

to protect you in case the cables are caught in rotating machinery.The integrated Sensor Keeper will retain

your sensor while you walk or climb to reach other machines.
