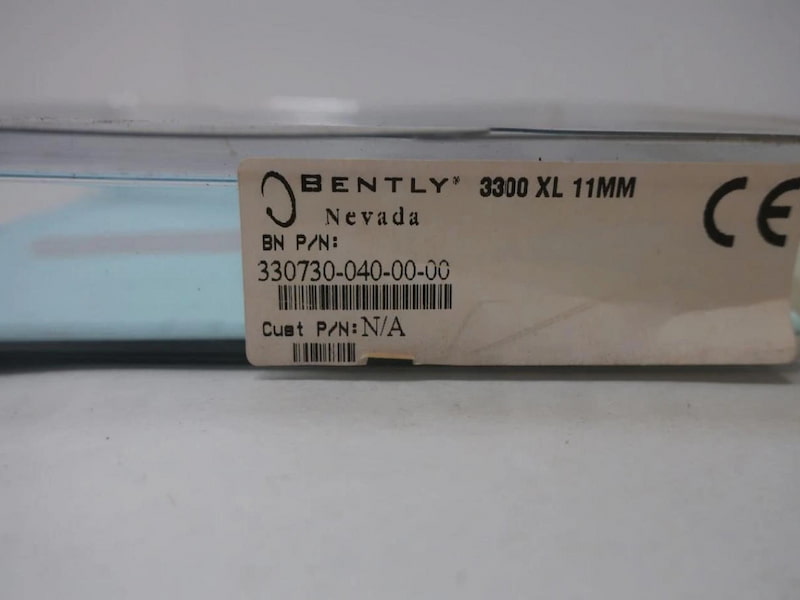

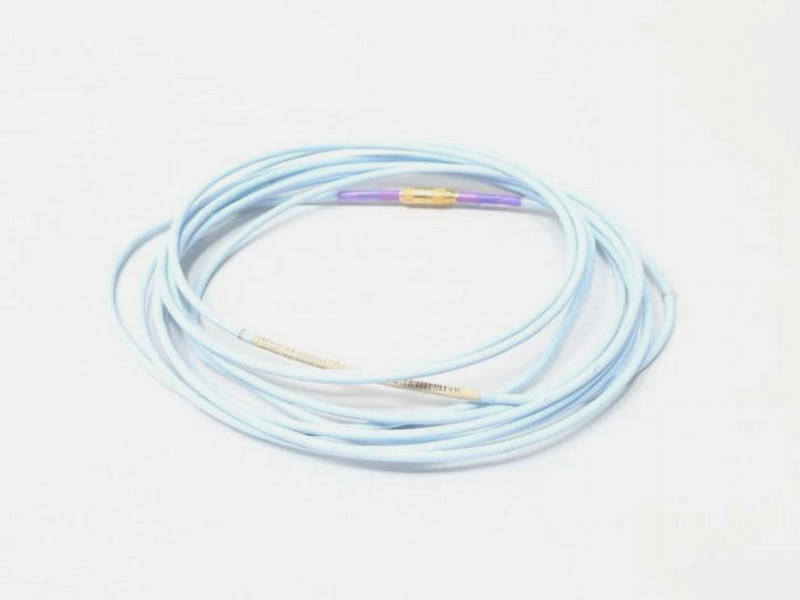

Bently Nevada 330730-040-00-00 3300 XL 11 mm Extension Cable

Bently Nevada 330730-040-00-00 3300 XL 11 mm Extension Cable

Description

The Bently Nevada™ 3300 XL 11 mm Proximity Transducer System consists of:

3300 XL 11 mm probe

3300 XL 11 mm extension cable

3300 XL 11 mm Proximitor Sensor

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

Axial (thrust) position measurements

Ramp differential expansion measurements on steam turbines

Rod position or rod drop measurements on reciprocating compressors

Tachometer and zero speed measurements

Phase reference (Keyphasor) signals

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
