Allen-Bradley T9482 Analog Output Module

Allen-Bradley T9482 Analog Output Module

Description

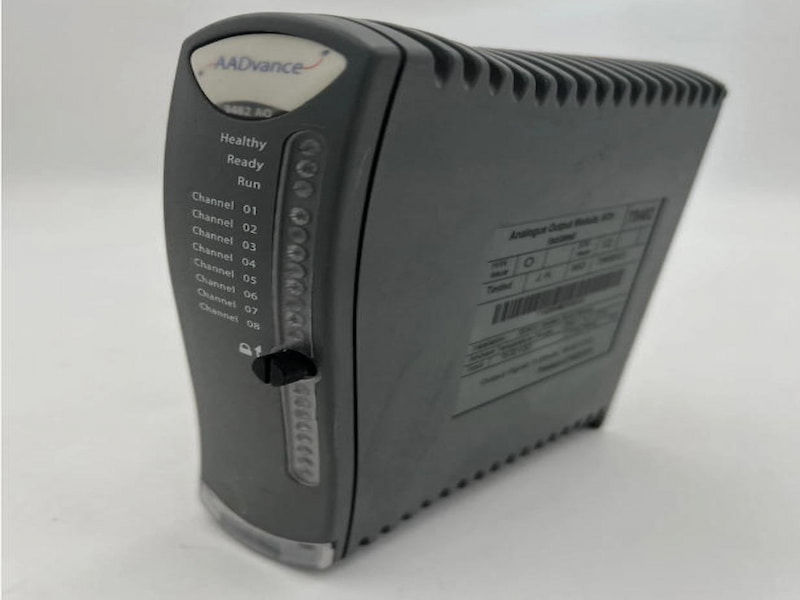

T9482 is an 8-channel isolated analog output module of Allen-Bradley AADvance safety control system. It is specially designed for high-reliability industrial scenarios, providing 4–20 mA current output, and precisely driving on-site equipment such as valves and actuators.

This module supports single/double module redundant configuration, integrates channel-level isolation, fault diagnosis and configurable failure modes, and is compatible with SIS safety instrumented systems, meeting the signal output requirements for high-security level applications in the oil and gas, petrochemical, etc. industries.

Features

• Compatible with AADvance security control system, with 8-channel isolation for 4–20 mA current output
• Supports single/double module redundant operation to enhance system fault tolerance
• Electrical isolation of channels at 1500 VDC, with short circuit/open circuit monitoring
• Built-in comprehensive self-diagnosis, supporting HART protocol and configurable failure modes
• Compatible with 24 VDC redundant power supply, suitable for harsh industrial environments
