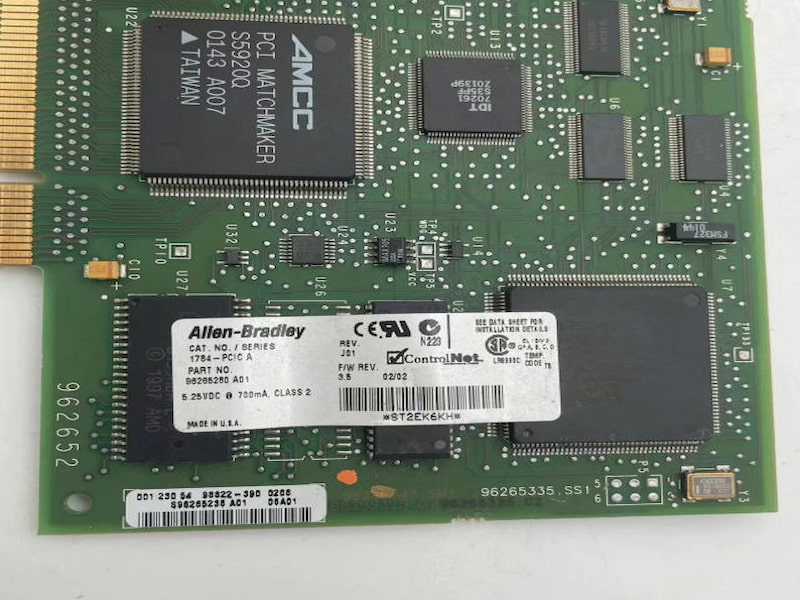

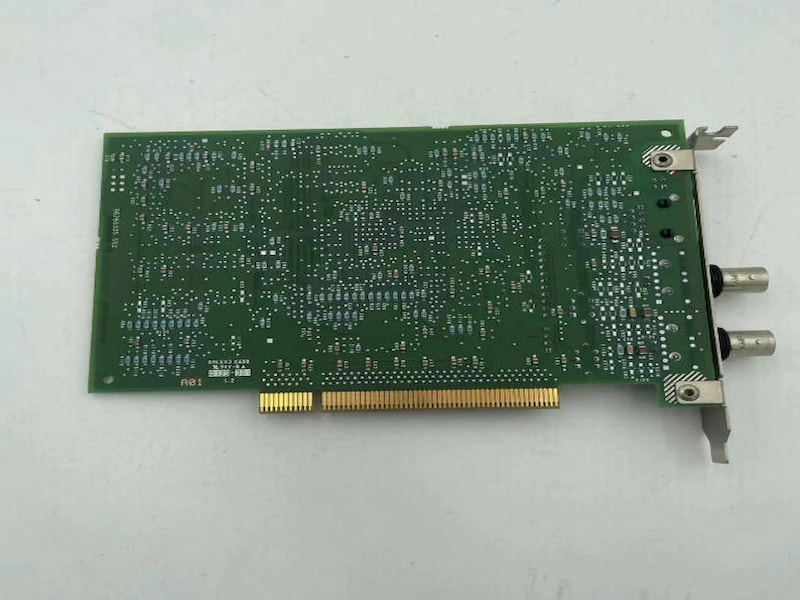

The 1784-PCIC and -PCICS cards are peripheral component interconnect (PCI) open-bus interface cards. The cards enable PCI local bus compatible computers to communicate directly with other ControlNetTM products.

The 1784-PCIC communication interface card is a messaging only card that provides ControlNet monitoring and configuration capabilities. The 1784-PCICS communication interface card provides ControlNet I/O bridging as well as monitoring and configuration capabilities.

Installation Information：

1. Turn off the power to the host computer with the power switch.

2. Remove the computer’s cover.

3. Select a vacant PCI local bus expansion slot.

4. Loosen the screw on the back (rear bracket) of the computer.

5. Remove the slot’s expansion cover.

6. Insert the card.

7. Insert the card into the edge connector and tighten the expansion slot screw.

8. Turn on the computer to be certain that it comes up correctly.

Technical Specifications
