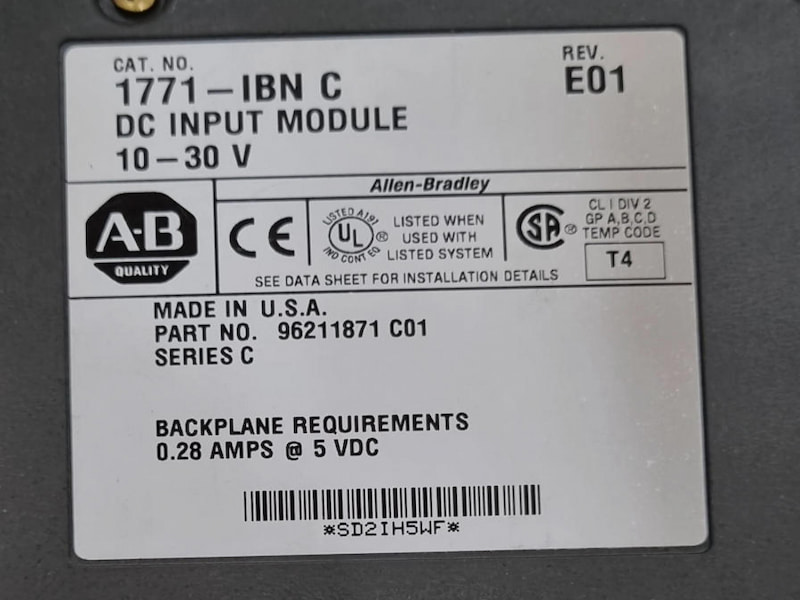

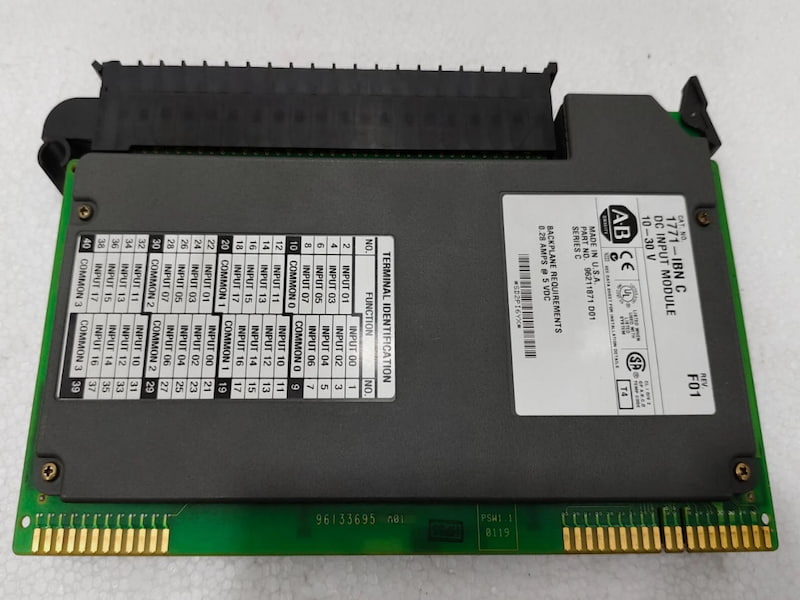

Allen-Bradley 1771-IBN DC (10...30V) Input Module

Allen-Bradley 1771-IBN DC (10...30V) Input Module

Description

1771 digital dc input modules convert dc signals from user devices to the appropriate logic level for use within the processor. Typical input devices include:

• proximity switches

• limit switches

• selector switches

• float switches

• pushbutton switches

Allen-Bradley dc input modules are available with a wide range of input terminals per module.

Installation

To install the module and field wiring arm, follow this procedure：

1. Place the module in the card guides on the top and bottom of the chassis that guide the module into position, noting the following:

• For a 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B I/O chassis, snap the chassis latch over the top of the module to secure it.

• For a 1771-A1B, 1771-A2B, 1771-A4B I/O chassis, swing the chassis locking bar down into place to secure the modules, making sure the locking pins engage.

2. Attach the 1771-WN wiring arm to the horizontal bar at the bottom of the I/O chassis noting the wiring arm pivots upward and connects with the module so you can install or remove the module without disconnecting the wires.

Technical Specifications
