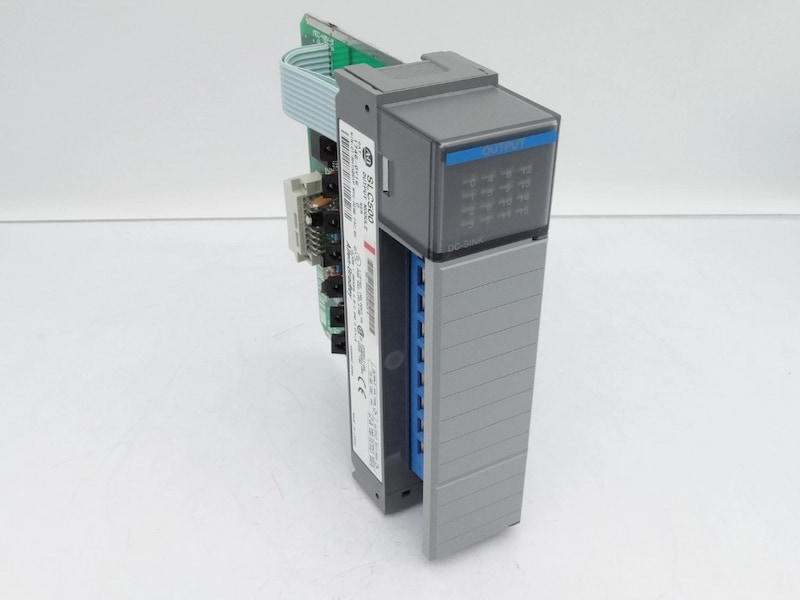

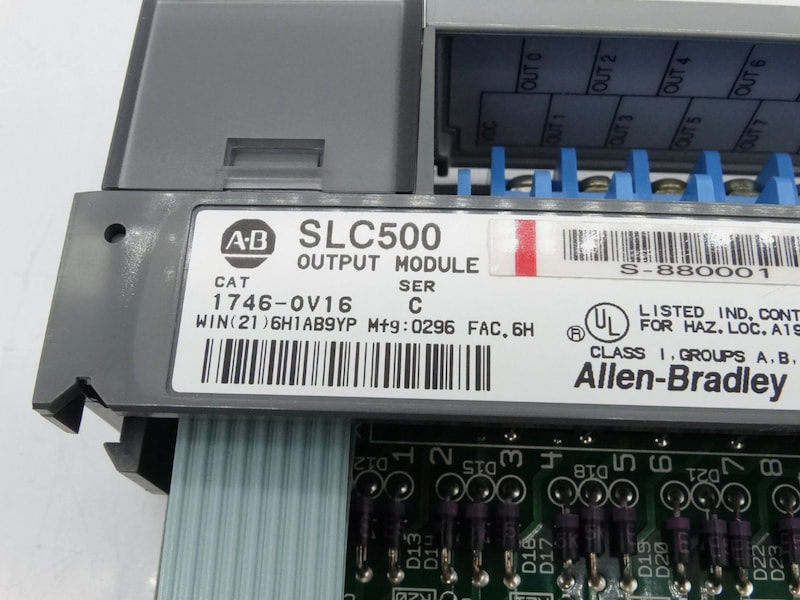

Allen-Bradley 1746-OV16 DC Output Module

Allen-Bradley 1746-OV16 DC Output Module

Description

Our wide variety of input, output, and combination modules makes theSLC 500™ family the smart choice for all of your small PLc applications./O modules are available in a wide variety of densities including 4-, 8-, 16-and 32-point and can interface to AC, DC, and TTL voltage levels. Outputmodules are available with solid state AC, solid state DC, and relay contacttype outputs. For added flexibility, combination modules are also availablein 2-input/2-output, 4-input/4-output, and 6-input/6-output versions.

Our wide variety of input, output, and combination modules makes theSLC 500™ family the smart choice for all of your small PLc applications./O modules are available in a wide variety of densities including 4-, 8-, 16-and 32-point and can interface to AC, DC, and TTL voltage levels. Outputmodules are available with solid state AC, solid state DC, and relay contacttype outputs. For added flexibility, combination modules are also availablein 2-input/2-output, 4-input/4-output, and 6-input/6-output versions.

Class l, Division 2 certified by UL and CSA. CE compliant. All modules areUL 508 listed and CSA 22.2 142 approved and meet Class l, Division 2hazardous location requirements of both Underwriter's Laboratory and theCanadian Standards Association. For use within the European Union or EEA regions,most modules have been tested to meet Council Directive 89/336Electromagnetic Compatibility.

An output module controls the output signal in the following manner:

• Logic circuits determine the output status.
• An output LED indicates the status ofthe output signal.
• Optical isolation separates module logic and backplane circuits from thefield signal.
• The output driver turns the corresponding output on or off.

Technical Specifications
