Description

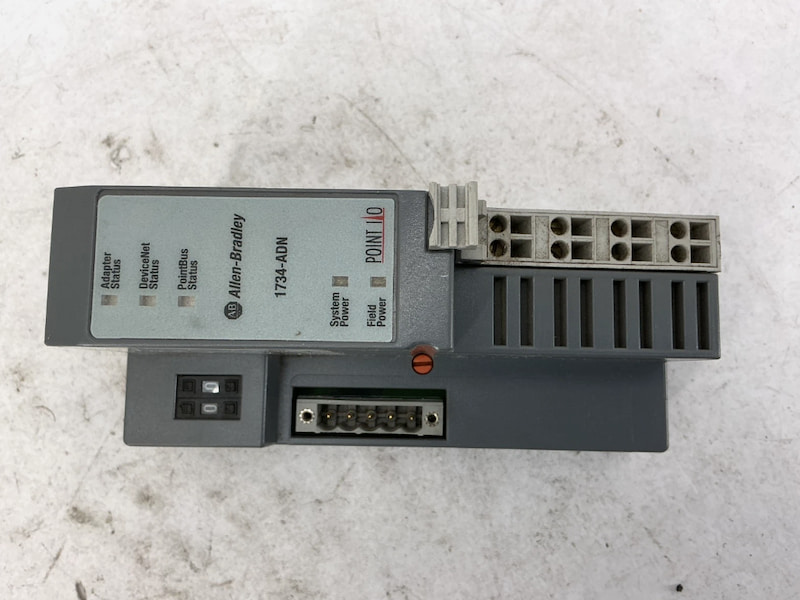

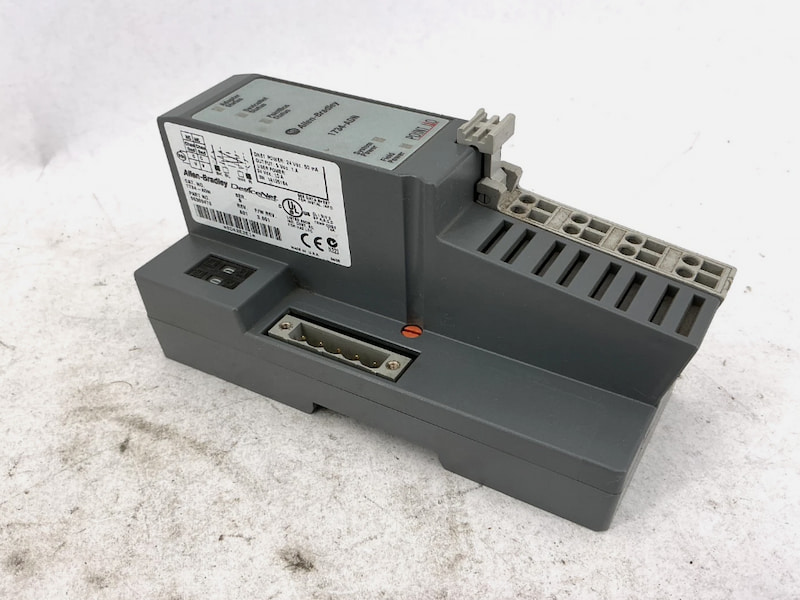

The 1734-ADN(X) POINT I/O DeviceNet Adapter is a communication adapter for POINT I/O modules.

The adapter provides an interface for controlling and communicating with POINT I/O modules on a DeviceNet network.

• Built-in power supply powers the I/O modules through the backplane
• Up to 63 I/O modules per assembly, for up to 504 points on a single network node
• Provide the interface between the POINT I/O™ modules and backplane, and the desired network
• Snap directly onto the DIN rail

Features

• Self-Test：On power-up, the adapter performs a self-test. The adapter tests various internal and programmatic memories and checks the status indicators (LEDs).
• Field Upgradable Firmware：You can update the adapter’s firmware with the ControlFlash Utility software. This feature lets you always use the most current application code
• Fully Software Configurable：The adapter is fully software configurable using RSNetWorx for DeviceNet. You must configure the adapter for use with a DeviceNet master (e.g., 1756-DNB) and separately for use with Subnet devices.
• Connections：The adapter supports Master/Slave connection types on the DeviceNet network. On the Subnet, the adapter functions as a scanner device, exchanging data with I/O modules.
• Baudrates：

  125Kbaud

  250Kbaud

  500Kbaud

  Autobaud - The adapter detects the primary DeviceNet network baudrate and automatically sets its own baudrate to match the network

  For the 1734-ADN, the PointBus can be configured to operate at 1Mbaud (1000Kbaud)
