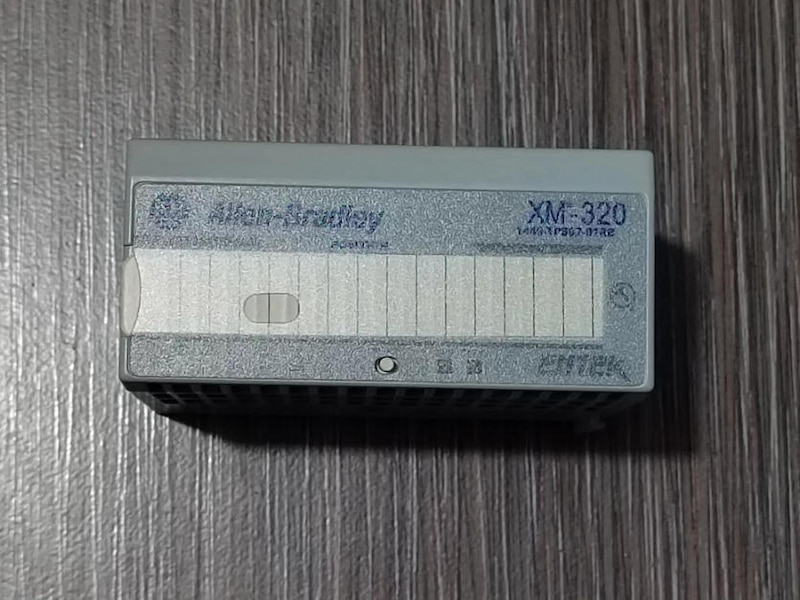

Allen-Bradley 1440-TPS02-01RB XM-320 Position Module

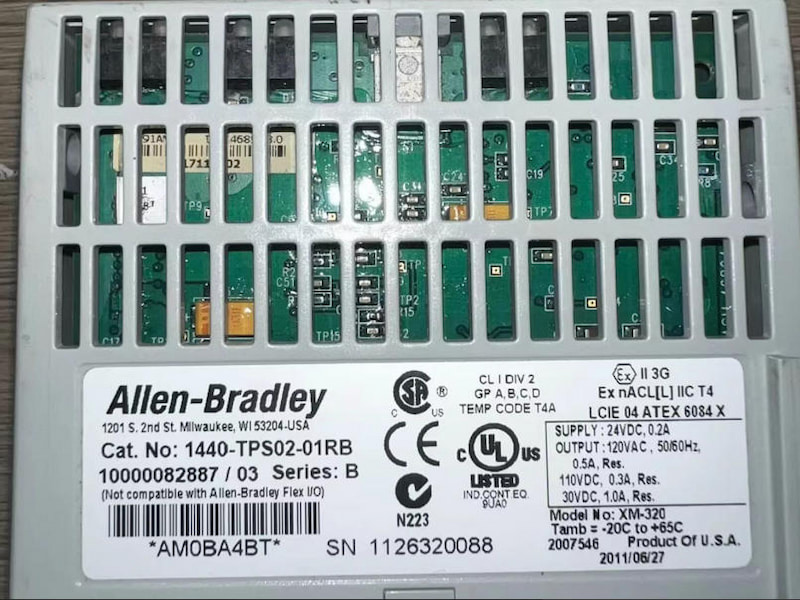

Allen-Bradley 1440-TPS02-01RB XM-320 Position Module

Description

The XM series of intelligent I/O modules process, in real-time, the critical parameters used to assess the current health and predict the future health of industrial machinery—providing machinery protection and reducing downtime. Use the XM modules in a standalone system, or integrate them with existing automation and control systems.

The XM-320 Position module is a 2-channel general purpose monitor. It is a member of the Allen-Bradley™ XM® Series, a family of DIN rail mounted condition monitoring and protection modules that operate both in stand-alone applications or integrate with Programmable Logic Controllers (PLCs) and control system networks.

The XM-320 supports the following measurements:

• Axial Position (Thrust) - Axial position (thrust) is a measurement of the relative position of the thrust collar to the thrust bearing.
• Cam (Valve) Position - Valve position is a measurement of the main steam inlet valve stem position.
• Shell (Case) Expansion - Shell (Case) expansion is a measurement of the thermal growth of the case from its fixed point outward.
• Differential Expansion - Differential expansion (DE) is a measurement of the differences between the thermal growth of the rotor compared to the case.

The XM-320 accepts input from linear variable differential transformers (LVDT), non-contact eddy current probes, rotary cam (valve) potentiometers, or any voltage output position measurement device.

Technical Specifications
