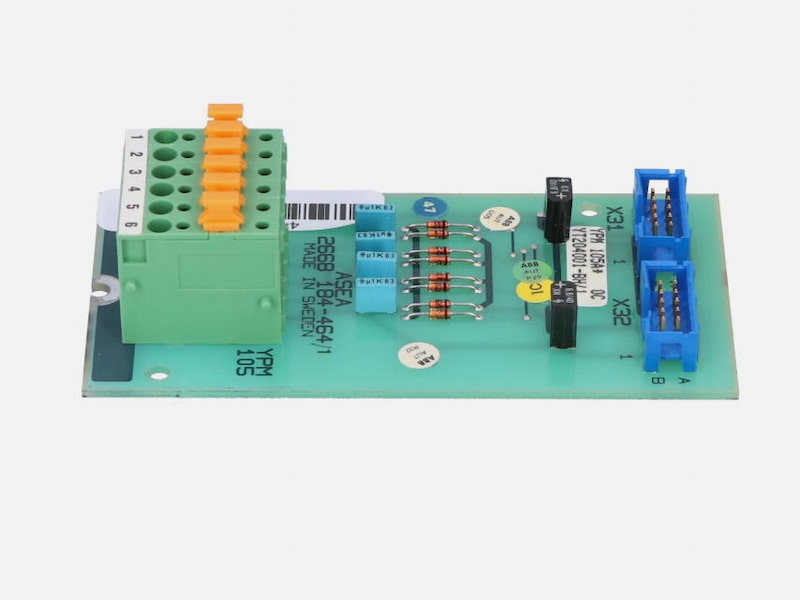

ABB YPM105A YT204001-BH Digital Output Relay Module

ABB YPM105A YT204001-BH Digital Output Relay Module

Description

ABB YPM105A (Product Number YT204001-BH) is an industrial-grade digital output relay module designed for industrial automation control systems. Its core function is to provide stable output and precise control for 8 channels of AC/DC signals. As critical hardware connecting control systems to actuators, it delivers reliable signal execution support for scenarios such as equipment start/stop and circuit switching in industrial production.

Multi-channel output capability: Equipped with 8 independent digital output channels supporting AC/DC universal signal output, capable of simultaneously driving multiple external actuators to meet the requirements for multi-device collaborative control in industrial scenarios.

Wide Environmental Adaptability: Operating temperature range spans -25°C to +70°C, with storage tolerance from -40°C to +85°C. Withstands temperature/humidity fluctuations and electromagnetic interference in industrial environments, ensuring stable operation under complex conditions.

Safety Protection Design: Incorporates overload and short-circuit protection to prevent damage to the module and connected devices from circuit anomalies. Achieves an IP20 protection rating with basic dust resistance, enhancing operational safety.

Convenient Integration and Deployment: Features a compact structural design with minimal footprint, compatible with standard industrial rack mounting. Simple yet secure wiring facilitates rapid commissioning and future maintenance.

Technical Specifications
