Functional Description

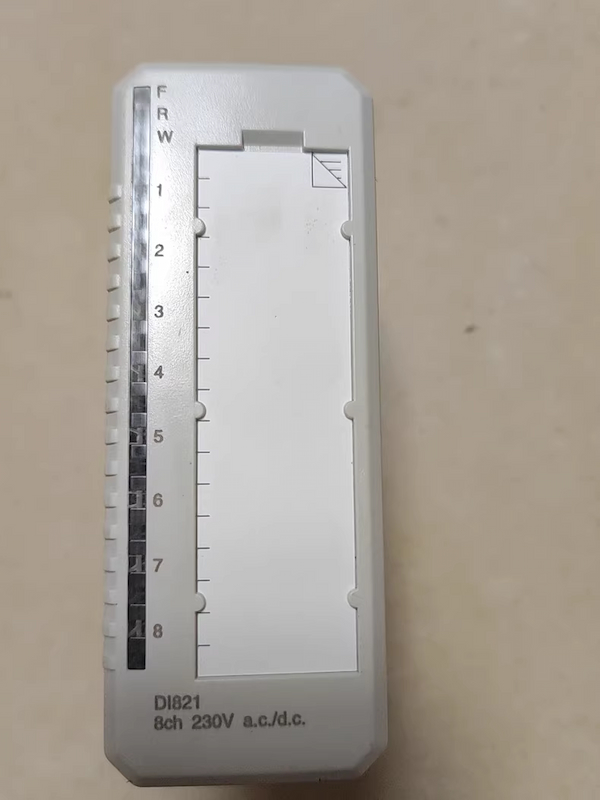

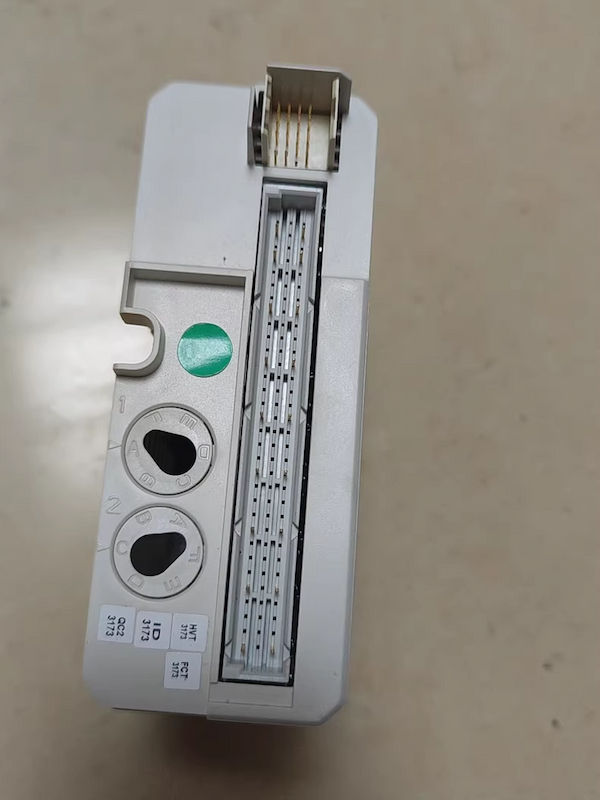

The DI821 is a 8 channel, 230 V a.c./d.c, digital input module for the S800 I/O. This module has 8 digital

inputs. The ac input voltage range is 164 to 264 V and the input current is 11 mA at 230 V a.c. The d.c. input

voltage range is 175 to 275 volt and the input current is 1.6 mA at 220 V d.c. The inputs are individually

isolated.

Every input channel consists of current limiting components, EMC protection components, input state

indication LED, optical isolation barrier and an analog filter (6 ms).

Channel 1 can be used as voltage supervision input for channels 2 - 4, and channel 8 can be used as voltage

supervision input for channels 5 - 7. If the voltage connected to channel 1 or 8 disappears, the error inputs

are activated and the Warning LED turns on. The error signal can be read from the ModuleBus.

Features and benefits

· 8 channels for 120 V a.c./d.c. inputs

· Individually isolated channels

· Voltage supervision of field input power

· Input status indicators

· Signal filtering
